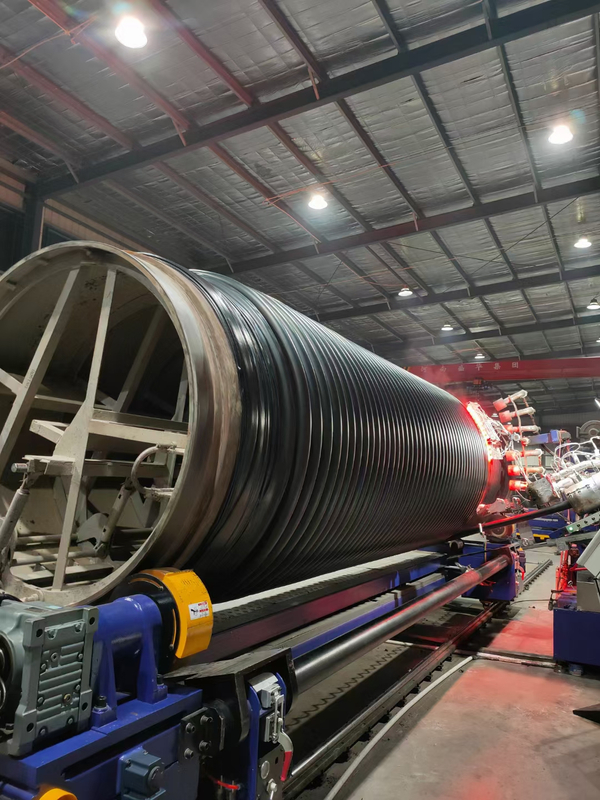

DN4000 Krah Pipes Production Line

Krah pipe prouduction machine to produce the large diameter Krah pipe from DN300 to DN4000mm. The Krah pipe can be used for non-pressure pipe such as sewerage pipe, drainage pipe , marine structured wall pipe, or pressure pipe.
Size:
Availability:
Quantity:
  • PSW-4500
  • EAGLE
  • 8477

                                               krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe

      The big advantage of this Krah pipe production line is that production is very flexible. One Krah pipe production line can produce the pipe from DN300 to DN4500 and changing time is very short with variety of wall structure. The pipe length can be from 1 meter to 9 meters according to requirement with any international standards.

     The main applications for the Krah pipe products are low, non -pressure applications like for sewer, drainage, storm water, sea outfall/intake, irrigation systems and or even chemical storage tanks. The software of PIPEFINDER can help to produce the pipes, fittings, and manholes according to standard and project requirements.


Main Feature of Krah Pipe Production Line


· Krah pipe diameters: DN/ID 300 mm up to DN/ID 4500 mm

· Krah pipes length: 6 to 9 meters, with integrated socket and spigot

. Pipe ring stiffness: SN1 to SN32 or above, according to ISO9969

· Output: 700-1400kg/h (HDPE, PP-HM, PP-B, PP-H)

· Krah pipes Application: Drainage Pipe systems, Sewage pipe systems, Industrial pipes, Relining, Outfall pipes, chemical storage tank, marine structured wall pipe, manhole, etc.



 Krah pipes wall structure(PR, OP, CPR, SQ, VW, SP)

PR

OP

CPR

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

PR profile achieve high stiffness with low weight. This is the   most common profile for sewer and water drainage applications.

OP profile can achieve greater stiffness with a comparatively low   weight for sewer and drainage application.

One more Water way layer on top of CPR profile, can achieve higher   stiffness and lower weight for sewer and drainage application.


VW

SQ1

SQ2-4

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

HDPE spiral pipe production line

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

Solid pipe with a smooth inner and outer surface. These pipes can   be produced with a wall thickness of 5mm to 250mm for pressure pipe and storage   tank.

This profile option has a smooth inner and outer surface,   including internal profile to one layer mainly for fittings, manhole, double   wall tank, etc.

Another one or several SQ1 profile layers ensure the very high   ring stiffness for large diameter and special application.


HDPE spiral pipes connection

HDPE spiral pipe, HDPE spiral pipes, HDPE spiral pipe machine,krah pipe, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,HDPE spiral wound pipes, HDPE corrugated pipes

Rubber ring

krah pipe,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe

Electrical Fusion Welding Connection
