HDPE Spiral Tank Machine

HDPE/PP Spiral Winding Tank Machine Overview

     The HDPE/PP spiral winding tank machine represents a highly sophisticated approach to fabricating heavy-duty industrial storage solutions. By utilizing advanced extrusion technology, this equipment transforms raw thermoplastic pellets into massive, structurally uncompromising cylinders. The core extrusion mechanism is built with high-strength, wear-resistant alloy components, driven by premium-tier motors and gearboxes. When standing next to the operating line, operators notice the steady, controlled hum of the drive systems and the distinct, warm scent of melting polymer, indicating a highly stable and vibration-free extrusion process. This intelligent system fundamentally changes the economics of tank production. Traditional methods often require extensive investments in multiple steel core molds for different sizes. Our technology bypasses this limitation. By utilizing a gas-free preheating system and highly energy-efficient extrusion techniques, the machinery drastically reduces overall power consumption. It can produce tanks with a variety of wall thicknesses according to the height—depositing thicker layers at the base to counteract immense hydrostatic pressure, while tapering the thickness toward the top. This precise control saves substantial material and increases overall efficiency, allowing manufacturers to achieve a rapid return on investment. The bottom and top are welded by an automatic welder to guarantee reliable welding without any leakage.

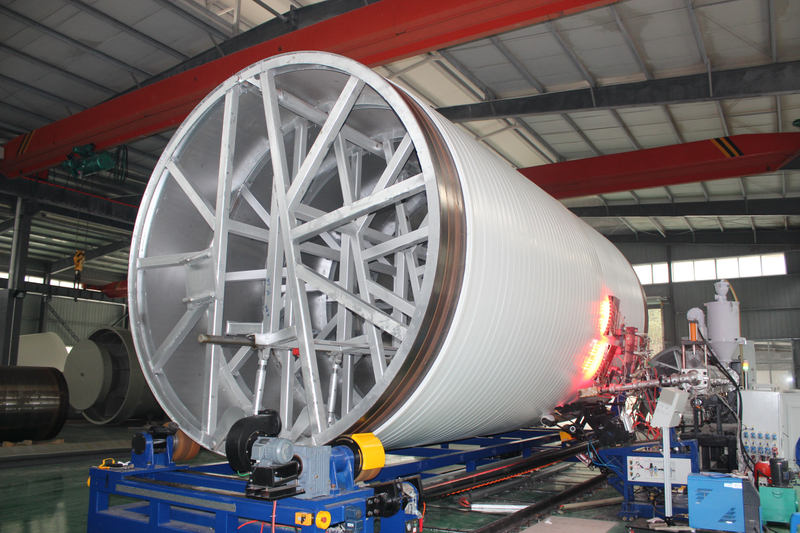

    With unique seamless winding technology, the wall thickness can be more than 120mm. As the molten polymer is continuously extruded, it fuses upon itself at a molecular level while still hot. This thermal bonding creates a solid, homogenous wall. Crucially, this technology guarantees that there is no tension in the tank wall, since the tension is naturally eliminated during the production and cooling phase. Because the material solidifies without forced mechanical stretching, residual stress is completely removed, resulting in superior dimensional stability over decades of heavy industrial use.

    With the advanced automatic welding machine, the bottom and cover can be welded automatically. Instead of relying on inconsistent manual labor, the automated welder glides along the joints with mechanical precision. The welding seam is uniform and strong, leaving a smooth, visually flawless joint. It avoids the disadvantage of manual welding and completely eliminates the risk of structural failure. Furthermore, this entire production cycle prioritizes environmental safety. By discarding outdated open-flame baking methods, the facility remains free from hazardous exhaust emissions and fire risks, aligning perfectly with modern industrial safety protocols.

Main Technical Specifications

The equipment is meticulously engineered to process a versatile array of industrial-grade thermoplastics. The containment vessels produced by this machinery exhibit extraordinary physical properties, particularly in demanding outdoor environments. The finished tanks possess profound UV resistance and inherent anti-corrosion characteristics, making them highly resilient against aggressive chemicals. Whether deployed in blistering desert sun or freezing northern climates, the material withstands extreme temperature fluctuations ranging from -30℃ to 90℃. This remarkable weatherability ensures an outdoor service life that easily exceeds 30 years. Below are the exact operational parameters:

· Tank diameters: DN/ID 600 mm up to DN/ID 4500 mm

· Tank length: 6-9 m

· Wall thickness: 120mm(Max)

· Material: PP-HM, PP-B, PP-H, HDPE, PVDF

· Output: 300-600kg/h

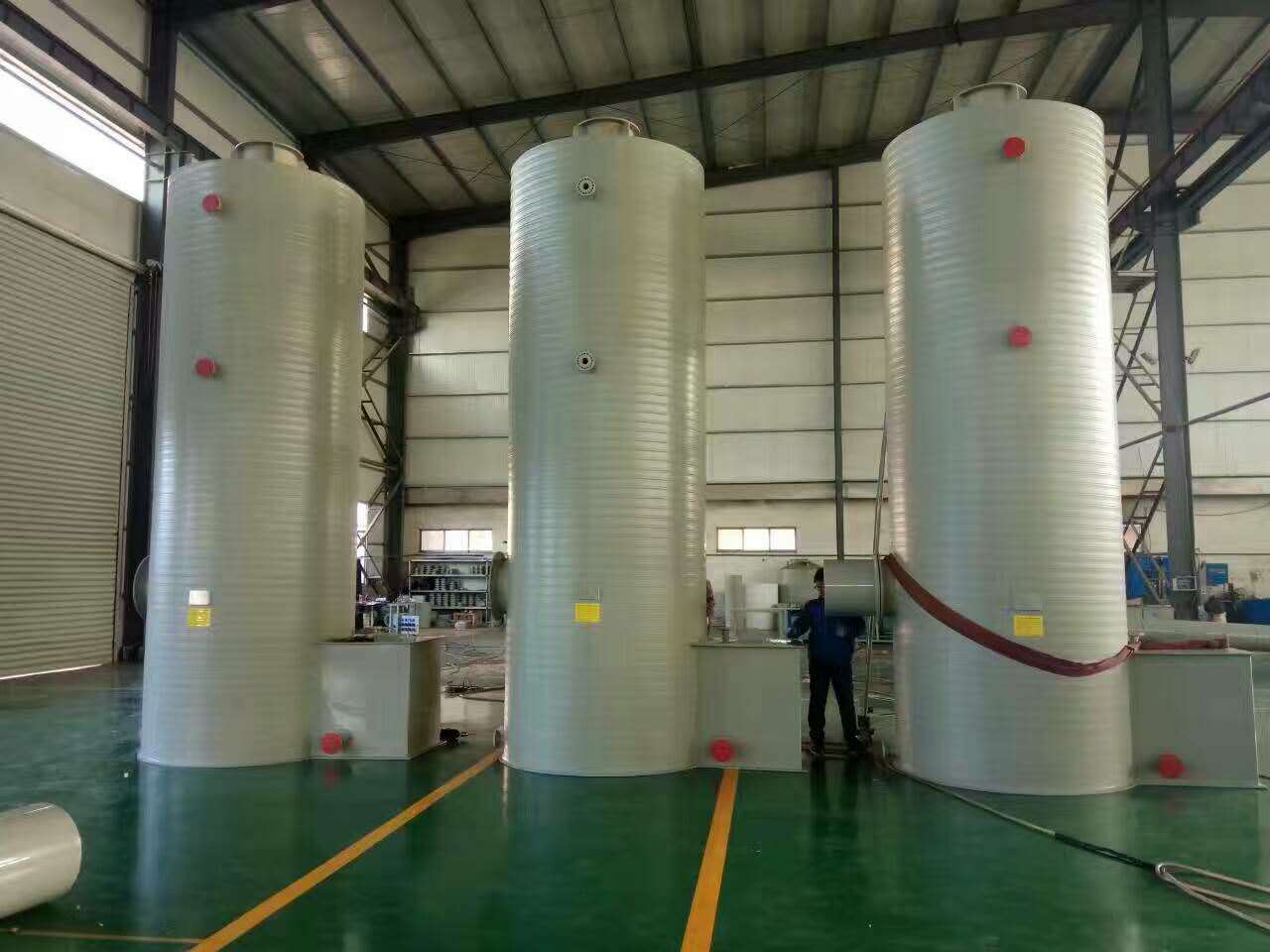

· Application: chemical tank, storage tank, water storage tank

Comprehensive Production Support & Global Service

To ensure that manufacturers can fully leverage this advanced extrusion technology, we back every machine with a robust infrastructure of technical support and enterprise-level reliability. The machinery is manufactured under stringent international quality control systems, carrying CE and ISO certifications that attest to its operational safety and engineering excellence. Equipped with an advanced PLC automatic control system, the entire production line achieves intelligent manufacturing from initial extrusion winding to final top and bottom welding. This high degree of automation significantly elevates the yield rate of finished products while drastically reducing the reliance on manual labor, directly lowering operational costs.

Beyond the physical equipment, our veteran research and development team provides highly customized production line solutions tailored to specific facility layouts. We deliver a comprehensive global service network designed to ensure a smooth transition from installation to full-scale production. Our technical specialists travel worldwide to conduct on-site installation, precise equipment debugging, and comprehensive operator training. We also supply crucial raw material formula guidance, ensuring that your team understands exactly how to achieve the optimal melt flow for different tank applications. Accompanied by a highly responsive warranty system, this level of dedicated support guarantees that your production line remains active, profitable, and completely worry-free.
