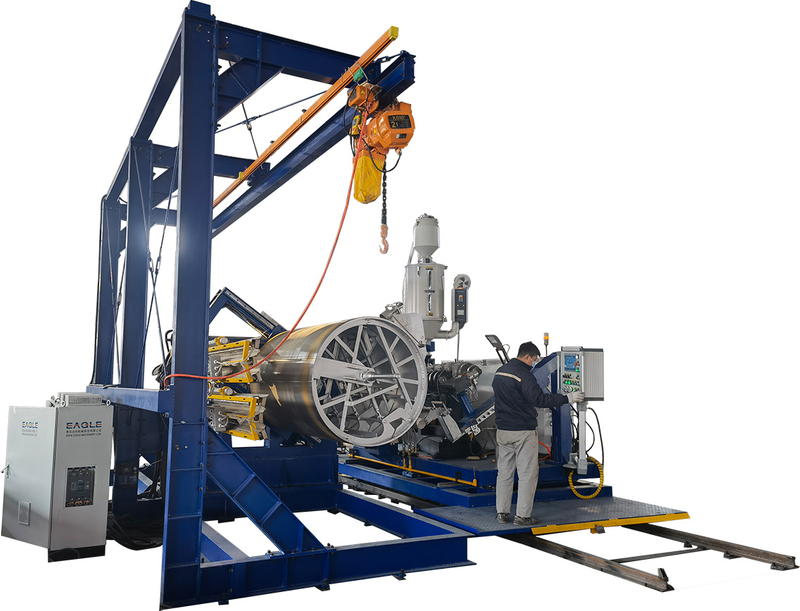

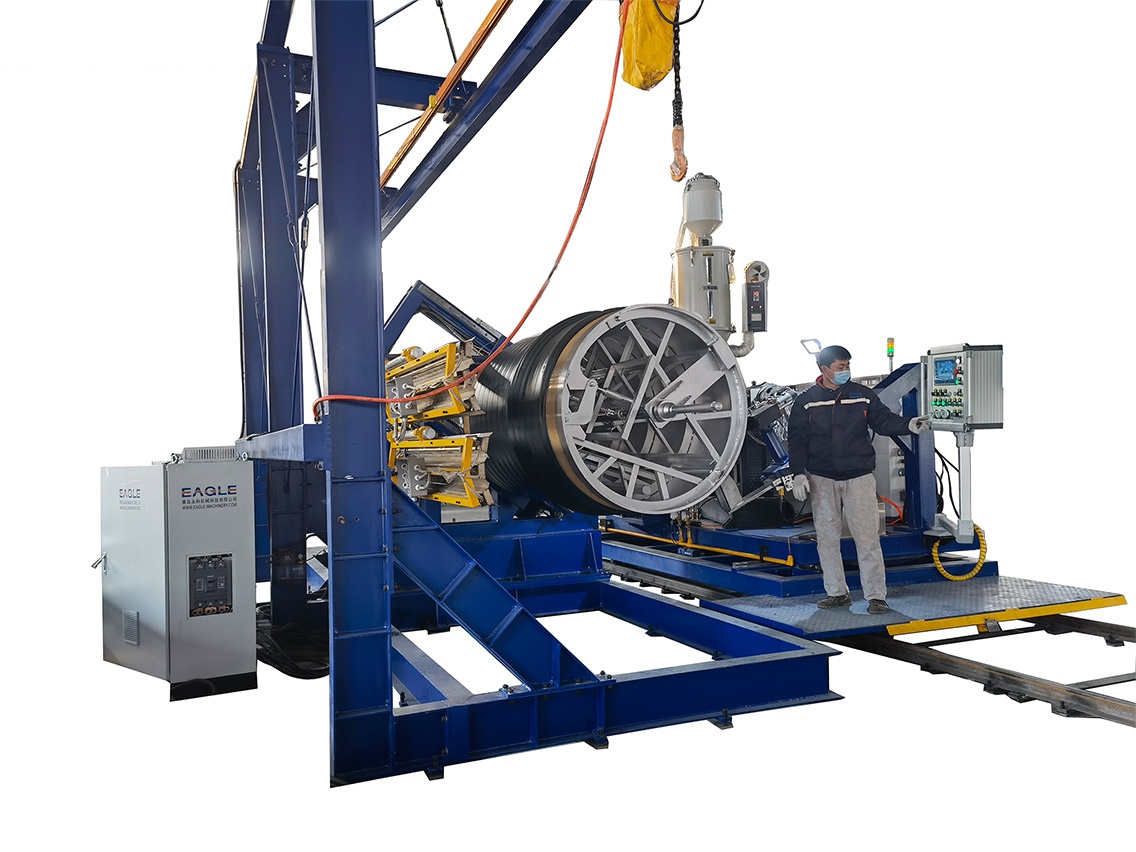

Large diameter HDPE fitting winding machine

Product Description & Core Manufacturing Technology

Nowadays the large diameter of HDPE solid wall extruded pipe is used widely in the world, serving as the critical backbone for modern civil engineering and industrial fluid transport. In numerous demanding projects, the pipe diameter frequently exceeds DN1200mm, scaling up to DN2400 and more to accommodate massive volumetric flows. Small size of fittings such less than DN630 can be made by injection process, but for large diameter, it is very hard and difficult with the injection technology. The capital expenditure required for massive injection molds, immense clamping forces, and the extensive floor space needed means the investment is very high, often rendering it economically unviable for specialized or customized production runs.

To overcome these industrial bottlenecks, our winding technology can supply you one low investment to produce large diameter HDPE pipe fittings. By shifting from traditional injection to a continuous helical extrusion and winding method, facilities can completely bypass the dimensional constraints and exorbitant mold expenses of conventional manufacturing. This paradigm shift allows producers to achieve highly efficient mass production of massive components with a fraction of the initial capital outlay. The machinery operates with a steady, controlled mechanical hum, utilizing precision thermal extrusion that thoroughly melts the polymer to an exact viscosity before spiraling it onto a continuously rotating mandrel. This dynamic process ensures a flawless, homogeneous wall structure without the weak points, stress concentrations, or weld lines typically associated with injection molding.

Advanced Extrusion Process and Mold Design

At the heart of this equipment lies a meticulously engineered extrusion system paired with high-strength patented mandrels. These core components are specifically designed to resist shrinkage and thermal deformation during the critical cooling phase. As the molten polymer wraps around the tooling, the sophisticated thermal management system ensures that every produced fitting maintains exceptional roundness and strict concentricity, regardless of the ambient temperature fluctuations in the facility. The tactile finish of the resulting inner wall is remarkably smooth to the touch, a characteristic that significantly reduces fluid friction and internal flow resistance in active operational pipelines. Moreover, the system demonstrates outstanding raw material adaptability. It is perfectly calibrated to process premium High-Density Polyethylene (HDPE) as well as Polypropylene (PP) resins, supporting highly efficient, pollution-free manufacturing that strictly aligns with international ISO environmental standards for sustainable industrial production.

Technical Specifications

Diameter range: OD 400 to OD 2400

Fitting length: 0.3m to 2 m

Pressure class: SDR17 to SDR 9

Extrusion output: upto 400kg/h

Finished Product Performance and Field Applications

The true value of utilizing our specialized winding machinery becomes evident in the superior performance of the finished components. Fittings produced through this advanced helical extrusion process exhibit exceptionally high ring stiffness and robust structural integrity. Because the material is fused seamlessly at optimal temperatures, the resulting joints are 100% leak-free. The dense, non-porous nature of the extruded polymer provides excellent resistance to aggressive acid and alkali environments, ensuring a reliable service life that easily exceeds 50 years under demanding underground or exposed conditions. The structural integrity remains uncompromised even when subjected to continuous heavy soil loads or dynamic traffic stresses.

Versatile Terminal Application Scenarios

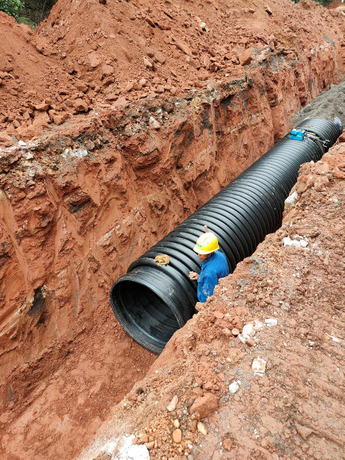

By enabling the cost-effective mass production of massive components, this technology opens up new possibilities for large-scale infrastructure and heavy industrial projects. The manufactured fittings are widely deployed across various critical sectors:

• Municipal Water and Drainage Systems: Providing secure, high-capacity flow management for urban centers without the risk of groundwater contamination or exfiltration.
• Long-Distance Water Transfer and Irrigation: Ensuring minimal pressure loss over vast agricultural networks due to the ultra-smooth internal surface finish, which optimizes pumping energy efficiency.
• Chemical Storage and Processing: Delivering the necessary chemical inertness to safely transport volatile or corrosive industrial fluids without degradation.
• Mine Ventilation and Exhaust: Offering lightweight yet incredibly durable structural performance in harsh, abrasive underground extraction environments.

Construction Efficiency and Installation Convenience

Beyond manufacturing economics, the end-user experiences massive benefits during on-site deployment. Despite their massive scale, the HDPE fittings produced by this winding machine remain surprisingly lightweight compared to concrete or steel alternatives. This significant reduction in self-weight translates to easier handling, lower transportation costs, and reduced reliance on heavy lifting equipment at the job site. Furthermore, the precise dimensional accuracy achieved by the anti-shrinkage mold design ensures perfect compatibility with socket electrofusion connection methods. This allows field crews to execute rapid, secure, and permanent joints. The inherent flexibility of the polymer, combined with these monolithic fused joints, dramatically enhances the overall pipeline network's ability to absorb ground shifts, soil settlement, and seismic activity, providing superior earthquake resistance and long-term disaster mitigation capabilities for critical municipal assets.
