Structural wall high-density polyethylene offers superior load-bearing capabilities. It provides excellent chemical and corrosion resistance. However, the long-term viability of these networks relies almost entirely on joint integrity. The pipe body rarely fails underground. The connections endure the most operational stress.
During the procurement and engineering specification stages, selecting an incorrect jointing method introduces massive risks. Bad decisions lead to rapid groundwater infiltration. They also cause hazardous sewage exfiltration. Ultimately, your structural stability becomes severely compromised. Engineers must evaluate connection methods carefully.
This guide breaks down the primary jointing mechanisms available today. We offer an objective framework for contractors and municipal planners. You will learn how to align technical specifications with your project environments. We cover installation realities, local constraints, and compliance standards. This knowledge ensures a resilient, leak-proof infrastructure.
Evaluating joints is the most critical phase of pipe specification. Underground infrastructure almost always fails at the connection points. You cannot simply trust the raw material strength. You must scrutinize how separate sections bond together. A weak seam threatens the entire municipal network.
Groundwater entering the system carries a massive financial burden. We call this infiltration. Excess water overloads municipal treatment plants. Processing this unwanted groundwater wastes immense electrical energy. It wears down critical facility pumps prematurely. Taxpayers ultimately cover these hidden operational losses.
Conversely, sewage escaping the system causes catastrophic liabilities. We call this exfiltration. Escaped sewage pollutes local groundwater supplies. You face massive environmental agency fines. Soil contamination requires highly expensive remediation efforts. Total clean-up costs easily dwarf initial material savings.
Soil movement impacts pipeline integrity continuously over time. Differential settlement tests the limits of any connection. Rigid connections behave differently than flexible ones under ground stress. Rigid systems risk point-loading if the trench bed shifts unevenly. Flexible connections might experience joint shear under heavy loads. You must understand your local soil mechanics.
A successful connection must survive decades of operational stress. It must match the projected 50-to-100-year lifespan of the pipe itself. Environmental pressure remains constant deep underground. Planners must evaluate how every seam handles these continuous structural forces.

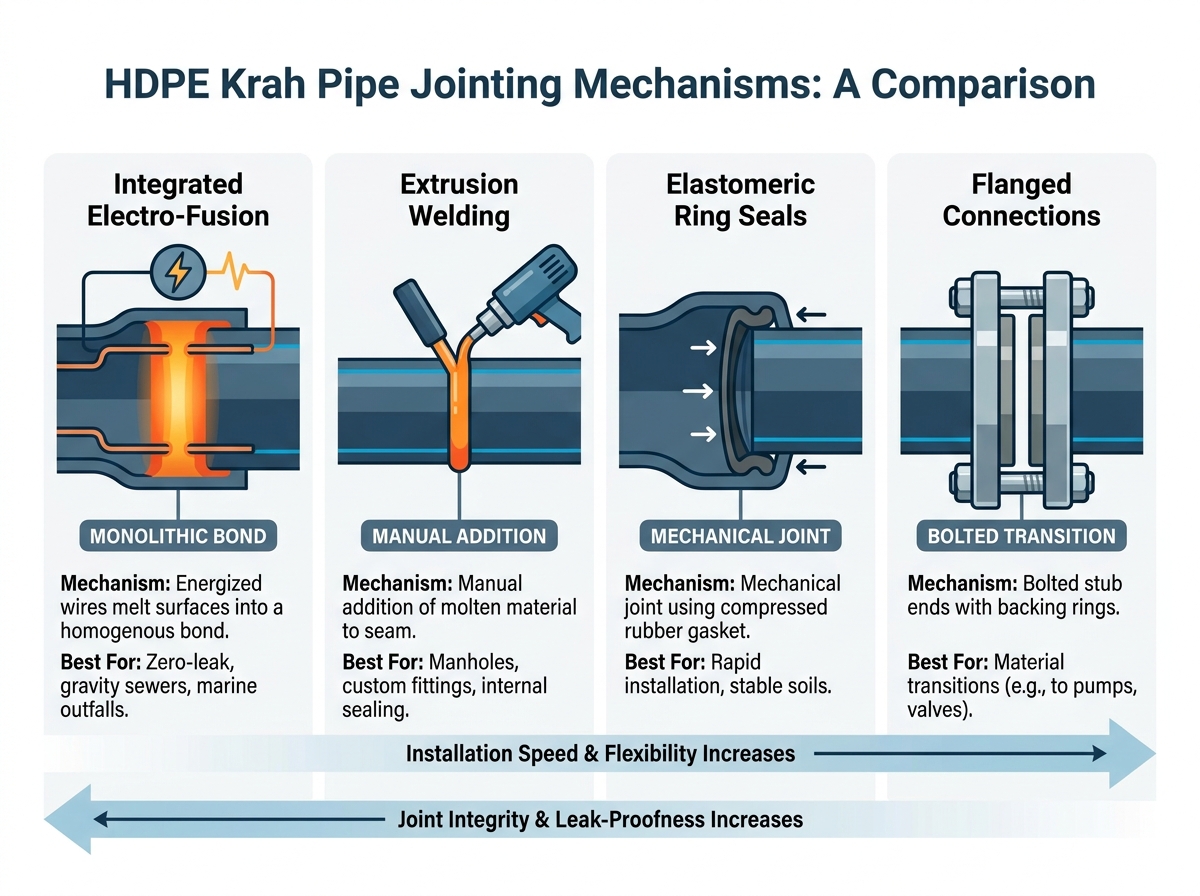

Engineers rely on four primary connection methods. Each mechanism solves specific environmental and operational challenges. You must match the mechanism to your exact field conditions.
Manufacturers embed copper wires directly into the pipe socket. Technicians energize these wires using specialized control boxes on-site. The electrical resistance generates intense, controlled heat. This heat melts the spigot and socket together. The process creates a homogenous, monolithic bond.
We recommend this method for low-pressure applications. It works perfectly for gravity sewers and marine outfalls. These aggressive environments demand absolute zero-leak performance. The monolithic structure resists root intrusion completely.
Operators manually add molten high-density polyethylene to the mated ends. They use handheld extrusion welding guns. Technicians can weld the inner seam, the outer seam, or both. The molten plastic fuses the two sections permanently.
This approach suits manhole connections and custom fabricated fittings. It provides an excellent internal seal for large-diameter lines. Crews just need physical access to the pipe interior. It requires highly skilled manual labor.
This mechanical connection uses a specialized rubber gasket. Crews slide the spigot into the bell end. The gasket compresses tightly between the two surfaces. This compression creates the required hydraulic seal.
Use this method for gravity pipelines in highly stable soils. It works exceptionally well when rapid installation matters most. You sacrifice a permanent monolithic bond for unprecedented installation speed. It requires less specialized equipment.
This mechanism involves plastic stub ends paired with steel backing rings. Technicians align the backing rings and bolt them tightly together. A gasket sits between the stub ends to ensure a tight seal.
Flanges allow smooth transitions to dissimilar materials. You can easily connect a HDPE Krah Pipe to existing steel lines. They connect seamlessly to ductile iron valves and municipal pump stations.
| Jointing Mechanism | Structural Bond Type | Best Application Scenario | Installation Speed |
|---|---|---|---|
| Integrated Electro-Fusion | Homogenous / Monolithic | Marine outfalls, high-groundwater sewers | Moderate (Requires cooling time) |
| Extrusion Welding | Homogenous (Manual) | Custom fittings, manhole tie-ins | Slow (Highly labor intensive) |
| Elastomeric Ring Seals | Mechanical / Flexible | Stable soils, rapid gravity lines | Very Fast |
| Flanged Connections | Mechanical / Rigid | Material transitions, pump stations | Fast |
Engineers must evaluate several technical dimensions before finalizing specifications. You cannot choose a method based on material cost alone. Consider the following structural and regulatory factors.
Tension capabilities vary wildly between connection methods. Welded and fused joints offer exceptional pull-out resistance. They handle axial stress easily during seismic events. They resist ground subsidence effectively. Gasketed joints remain prone to physical separation. High axial stress can pull them apart over time.
Gravity flow networks differ entirely from low-pressure transmission lines. Fused systems maintain internal pressure continuity flawlessly. They outperform elastomeric seals in pressured environments. Rubber gaskets might blow out under unexpected pressure surges. Monolithic bonds easily absorb these temporary hydraulic shocks.
Jointing difficulty scales differently for every single method. Electro-fusion remains highly efficient for massive pipe diameters. You can fuse DN1000+ sections reliably and consistently. Conversely, large-diameter extrusion welding demands extensive manual labor. It takes hours of meticulous hand-welding for a single massive seam.
Your chosen method must meet strict international standards. Ensure compliance with ISO 21138 for structured wall pipes. You must also verify applicable ASTM standards for your region. Follow specific joint leak-testing protocols before burying the line. Always conduct an air or water pressure test.
Engineering theory often clashes against harsh job site realities. You must plan for practical installation hurdles. Ignoring field conditions guarantees system failure.
Electro-fusion requires completely clean and dry surfaces. Extrusion welding also demands strictly dry conditions. Any trapped moisture ruins the monolithic plastic bond. Water creates steam pockets during the heating cycle. Trench dewatering takes significant time and money. Weather-shielding tents add unexpected operational delays.
Fusing a HDPE Krah Pipe requires specialized control boxes. You need highly stable, calibrated power generators. Voltage drops happen frequently in remote construction areas. A sudden voltage drop will compromise the automated fusion cycle. Contractors must secure reliable secondary power sources.
Manual welding relies entirely on human operator skill. You must hire properly certified plastic welders. Documented quality assurance processes remain non-negotiable. Modern electro-fusion boxes provide automatic data logging features. This digital logging minimizes human error significantly. It proves the weld occurred at the correct temperature.
Contractors must connect rigid 6-meter pipe sections. This action requires heavy lifting equipment in tight spaces. Crews must achieve exact structural alignment before starting any fusion. Poor alignment causes hazardous cold joints. Cold joints eventually crack and fail under heavy soil load.
Engineers need a practical decision matrix for daily operations. Use these logical rules to specify the correct mechanism.
Once you select a primary mechanism, execute strict quality assurance. Field verification protects your infrastructure investment.
Your underground infrastructure is only as durable as its weakest connection. Superior raw materials cannot compensate for poor jointing choices. System integrity requires absolute precision at every single seam.
Evaluating total installation conditions remains absolutely critical for success. Local weather patterns, soil stability, and labor expertise matter heavily. These field factors matter just as much as factory material specifications. You must bridge the gap between engineering theory and site reality.
We strongly recommend consulting your pipe manufacturer during the early design phase. They can help align your connection method with exact hydraulic demands. They will evaluate your specific geotechnical constraints objectively. Proper upfront planning prevents catastrophic municipal failures decades later.
A: Rubber naturally degrades over time. Fused connections create a permanent monolithic structure. Gaskets generally require eventual replacement as they lose elasticity. They also accept slightly higher leak rates over a 50-year horizon. Fused joints maintain strict zero-leak performance permanently.
A: Remediation usually requires extrusion welding from the inside. This fix works if the pipe diameter permits human entry. Otherwise, crews must physically cut out the failed section completely. This harsh reality highlights the absolute importance of perfect initial alignment before fusing.
A: Yes. Monolithic fused joints distribute thermal stress evenly across the entire pipeline. They handle aggressive temperature changes exceptionally well. Gasketed joints behave differently under thermal load. They can experience physical pull-out if thermal movement goes unmanaged. Proper backfill prevents this.
