Multifunctional universal welding machine

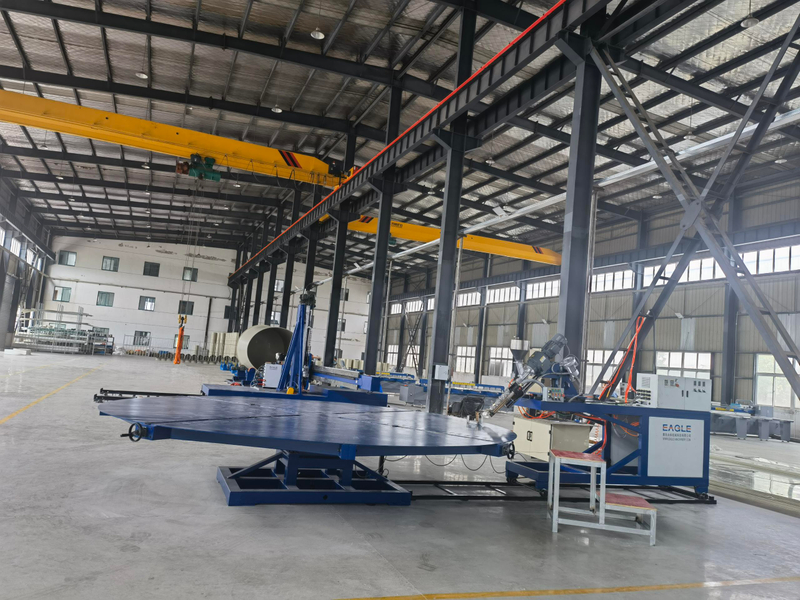

Multifunctional Universal Plastic Tank Welding Machine Overview

Engineered for precision and heavy-duty performance, this unique technology transforms the fabrication of large-diameter plastic tanks, drum bottoms, and covers. Operating with a steady, controlled hum, the equipment delivers a smooth and uniform welding seam that feels completely flush against the tank body, leaving no rough edges or weak points. It is purpose-built for processing a wide array of industrial thermoplastics, making it the definitive solution for PP, HDPE, PVDF, and PVC tank welding applications.

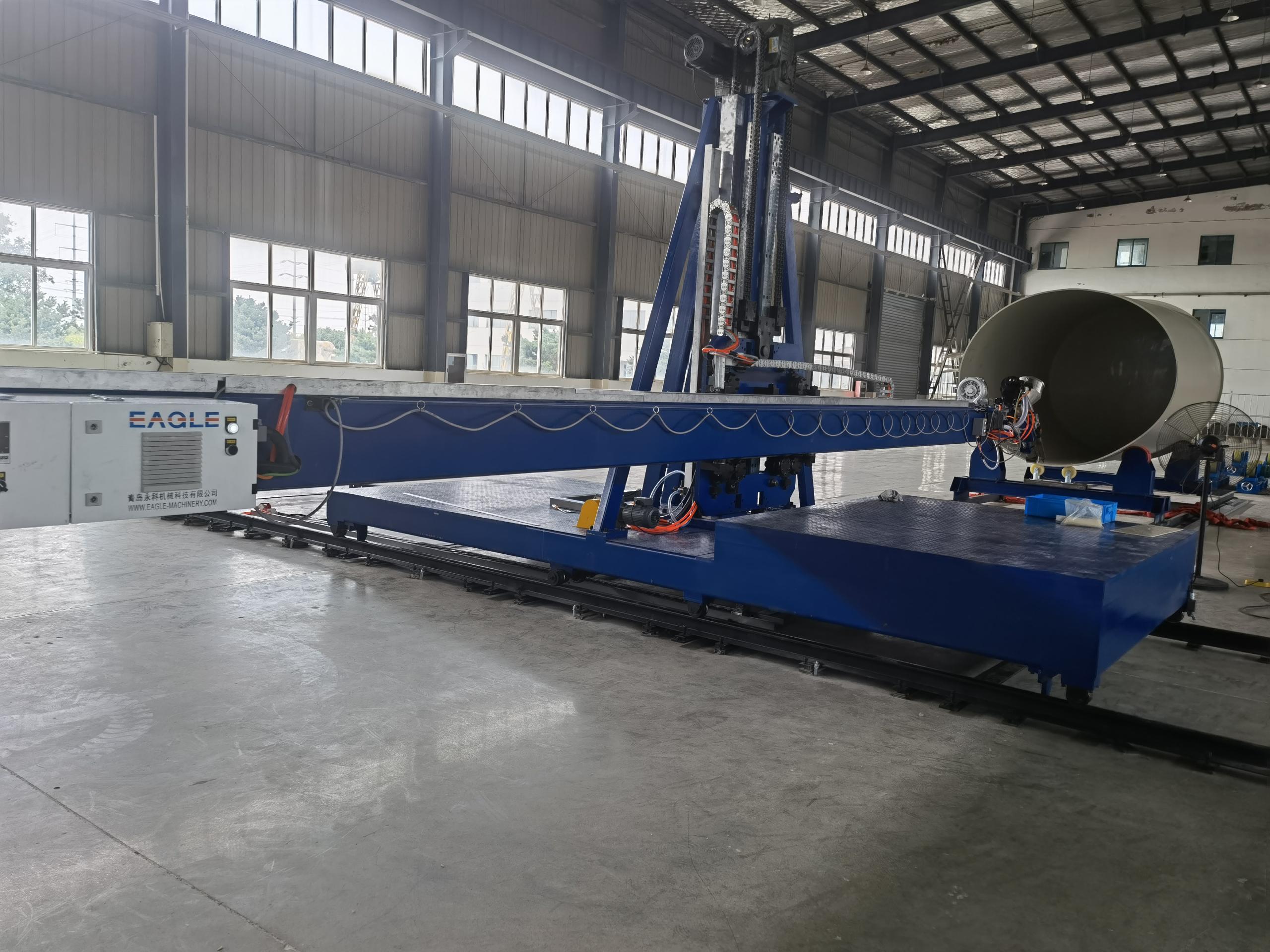

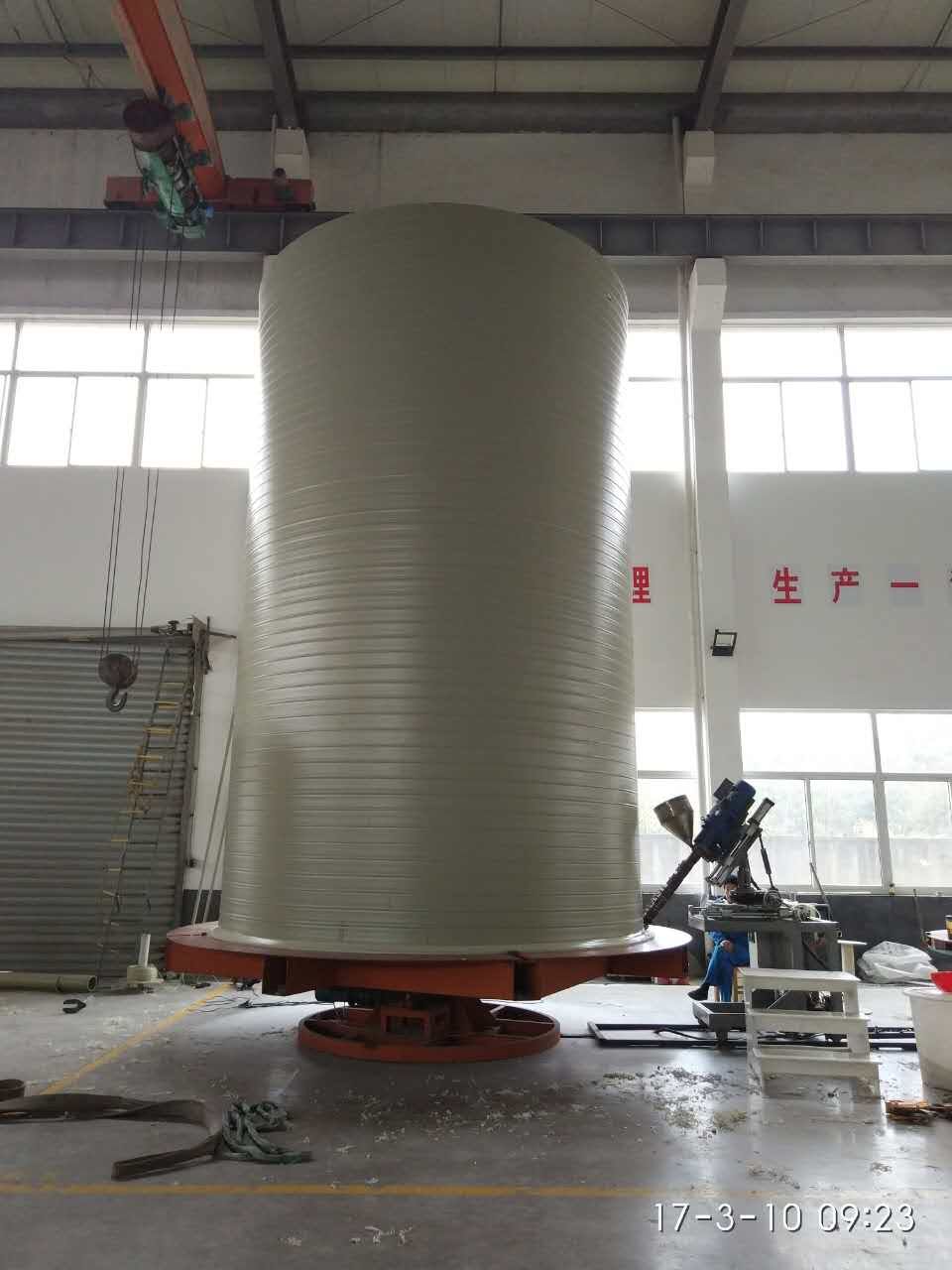

The multi-function plastic tank welding machine is equipped with an advanced extruder mechanism that utilizes raw material to extrude the welding strip directly into the joint. By employing this homogeneous material integration, it ensures the seam material is exactly the same as the tank body, guaranteeing uncompromising welding seam quality and structural integrity. The adaptive welding arm can be precisely adjusted according to the specific tank diameter—accommodating massive vessels from DN800-DN4500mm—and tank lengths ranging from 1m to 6m. Furthermore, the welding machine can smoothly transition to the side of the tank in order to weld side seams such as covers, connection joints, and other complex geometries. This machine is fully capable of executing inner, outer, and side welding seams with absolute consistency.

Equipped with an intelligent control panel, the system achieves fully automated continuous welding. This sophisticated automation drastically lowers the operational threshold, minimizing the need for manual intervention while maximizing output consistency.

Key Operational Features and Engineering Advantages

Our equipment is designed to solve the most demanding fabrication challenges by combining high automation, uniform welding seams, and exceptional output stability. The welding seam size can be precisely set according to the exact requirements of your specific product, ensuring optimal material usage and structural soundness.

• Homogeneity and Integrity: Because the extruded welding material is exactly the same as the tank body, the resulting seam is as strong as the original plastic sheet. This eliminates the risk of delamination and ensures a 100% leak-proof, industrial-grade seal that withstands immense internal pressures.
• Smooth and Continuous Operation: The system is engineered to weld long seams continuously and automatically. It entirely avoids the irregular welding joints, visual imperfections, or plastic flash typically caused by manual welding processes, resulting in a visually flawless and structurally sound finish.
• Exceptional Cost Efficiency: Designed for low-cost operation, the automated system requires virtually no labor during the active welding phase. Once the parameters are set, operators can step back, allowing the machine to perform zero-human-intervention long runs, which significantly reduces overall manufacturing overhead.
• Advanced Safety Mechanisms: To protect both the operators and the equipment during extended production cycles, the machine features built-in overload protection, overheating prevention systems, and immediate emergency shutdown protocols.

Technical Specifications and Performance Data

Understanding the exact capabilities of your fabrication equipment is crucial for maintaining tight production schedules and ensuring consistent product output. The specifications below highlight the machine's capacity to handle massive industrial vessels while maintaining an impressive extrusion rate. The rapid rotation speed combined with the substantial extruder output ensures that even the largest tanks are sealed rapidly without compromising the depth or strength of the weld.

With an extruder output reaching up to 12kg/h and a rotational speed of up to 20m/min, this machine dramatically accelerates production timelines. These precise parameters guarantee that facilities can scale up their output while maintaining strict adherence to industrial safety and quality standards.

Industrial Applications and Comprehensive After-Sales Support

The versatility of this multifunctional universal welding machine makes it an indispensable asset across various demanding sectors. It is widely utilized in the fabrication of chemical storage tanks, environmental water treatment vessels, and heavy-duty agricultural containment systems. Because it is perfectly compatible with a diverse range of thermoplastic materials—including PP, HDPE, PVDF, and PVC—manufacturers can rely on a single piece of equipment to fulfill multiple project requirements across harsh industrial environments.

Beyond the physical machinery, we are committed to ensuring the long-term success of your production lines. We provide comprehensive equipment operation training to ensure your technical staff can maximize the machine's capabilities from day one. Additionally, our reliable after-sales service includes a steady supply of original wear parts and an extended warranty program. This dedicated support structure guarantees the highly efficient and stable operation of your investment throughout its entire lifecycle, minimizing downtime and maximizing your operational profitability.
