PSW-4500
EAGLE
8477
The HDPE spiral wound pipe is the best big diameter plastic pipe for drainage, storm drain and sewerage application. It is of light weight, long service life, low friction, and reliable connection and easy to install it.

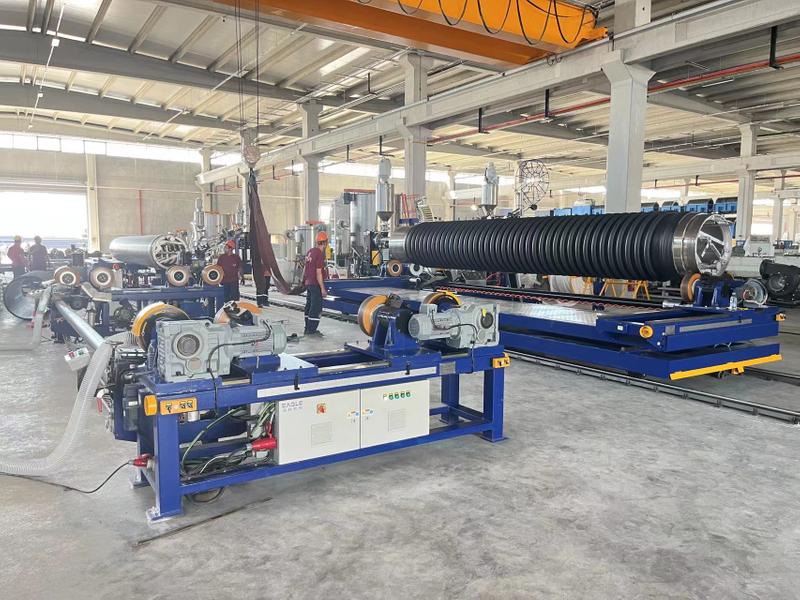

The HDPE spiral pipe machine is the newest development for the pipe in the field of sewage and drainage application. It is of high output, simple operation and more application facilities for the products, it can make the drainage and sewerage pipe, big water tank, solid wall pressure pipe, manhole, etc.
The big advantage of this HDPE spiral pipe production machine is that production is very flexible. One HDPE spiral pipe production machine can produce the HDPE spiral pipe from DN300 to DN4500 and changing time is very short with variety of wall structure. The pipe length can be from 1 meter to 9 meters according to requirement with any international standards.
The main applications for the HDPE spiral pipes are low, non -pressure applications like for sewer, drainage, storm water, sea outfall/intake, irrigation systems and or even chemical storage tanks. The software of PIPEFINDER can help to produce the pipes, fittings, and manholes according to standard and project requirements.
Main Feature of HDPE Spiral Pipe Production Machine
· HDPE spiral pipe diameters: DN/ID 300 mm up to DN/ID 4500 mm
· HDPE spiral pipe length: 6 to 9 meters, with integrated socket and spigot
. Pipe ring stiffness: SN1 to SN32 or above, according to ISO9969
· Output: 700-1400kg/h (HDPE, PP-HM, PP-B, PP-H)
· HDPE spiral pipe application: Drainage Pipe systems, Sewage pipe systems, Industrial pipes, Relining, Outfall pipes, chemical storage tank, marine structured wall pipe, manhole, etc.
HDPE spiral pipe wall structure(PR, OP, CPR, SQ, VW, SP)
PR | OP | CPR |
|  |
|
PR profile achieve high stiffness with low weight. This is the most common profile for sewer and water drainage applications. | OP profile can achieve greater stiffness with a comparatively low weight for sewer and drainage application. | One more Water way layer on top of CPR profile, can achieve higher stiffness and lower weight for sewer and drainage application. |
VW | SQ1 | SQ2-4 |
|
|
|
Solid pipe with a smooth inner and outer surface. These pipes can be produced with a wall thickness of 5mm to 250mm for pressure pipe and storage tank. | This profile option has a smooth inner and outer surface, including internal profile to one layer mainly for fittings, manhole, double wall tank, etc. | Another one or several SQ1 profile layers ensure the very high ring stiffness for large diameter and special application. |
Pipe connection
Electrical fusion connection
Rubber Ring connection
