HDPE/PP Spiral Winding Tank Machine
Home » Products » HDPE/PP Helically Wound Tanks Machine » HDPE/PP Spiral Winding Tank Machine
Share to:

HDPE/PP Spiral Winding Tank Machine

Quantity:
  • PST-4500
  • EAGLE
  • 8477

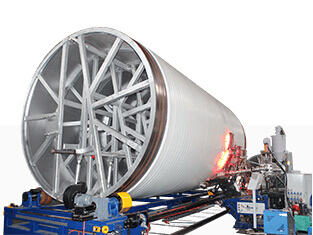

HDPE/PP Spiral Wounded Tank Machine


We supply HDPE/PP Spiral Tank Machine to produce the tank. This technology ensures the tank strength and reliable. It can produce the tank with variety of wall thickness according the height, so the Krah Winding Tank Machine can save material and increase the efficiency. The bottom and top is welded by automatic welder to guarantee the reliable welding and without leakage.


With unique seamless winding technology, the wall thickness can be more than 120mm. The Spiral Tank Machine technology guarantees that there is no tension in tank wall, since the tension is eliminated during the production.


With advanced automatic welding machine, the bottom and cover can be welded automatically. The welding seam is uniform and strong. It avoids the disadvantage of manual welding.


Main Feature of HDPE/PP Spiral Tank Machine


· Tank diameters: DN/ID 600 mm up to DN/ID 4500 mm

· Tank length: 6 m

· Wall thickness: 120mm(Max)

· Material: PP-HM, PP-B, PP-H, HDPE, PVDF

· Output: 300-600kg/h

· Application: chemical tank, storage tank


HDPE/PP Spiral Winding Tank Machine  HDPE Spiral Winding Tank Machine

PP Winding Tank Machine  HDPE/PP Spiral Winding Tank Machine
