Large Diameter Krah Pipes

Eagle Co. is professional manufacturer to produce large diameter Krah pipes extrusion machine. We are successful to supply all of the world with Krah pipes extrusion machine from DN300mm to DN5000mm and have more than 12 years’ experience.

We focus on developing and manufacturing the technology and equipment to produce HDPE spiral profile pipe, HDPE spiral tank, fittings, manhole, etc. Our product include Krah Pipe, HDPE sprial profile pipe machine, HDPE spiral tank winding machine, mandrel (production tool), single wall corrugated pipe machine, manhole boring machine, HDPE tank welding machine, etc.
Size:
Availability:
Quantity:
  • DN3000

  • EAGLE

  • 8477

  • 10

  • DN4500

   Advantage of Krah pipe

  1. Gravity and Pressure Pipes

    The Krah pipes extrusion line can produce Krah pipes as non-pressure pipe system and also Pressure pipes with the same technology and same machine.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipekrah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  2. Wide product range of Krah pipe,

    Beside the Krah pipes with diameter DN300 – DN4500mm, the product range include all kinds of fittings, tank, manhole, etc.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipekrah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  3. Tailor made pipes and fittings from Krah pipe

    Tailor made pipes and fitting for all different requirements and applications of individual projects can be manufactured.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipekrah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  4. Customized ring stiffness

    Any ring stiffness can be produced according to the customer requirement or the project situation.

    The ring stiffness of Krah pipes is determined at ISO9969 and calculated according to the formula:

    S=EI/D3

    S = Ring stiffness

    E = Elastic modulus [N/mm2]

    I = Moment of inertia [mm4/mm]

      D = internal radius up to Neutral phase


5. Life long service of Krah pipes

   Life expectancy of Krah pipes is conservatively estimated to be at least 100 years, using the standard design basis, compared to conventional pipe materials such as concrete pipe, steel pipe,etc, that often only have a life expectancy of about 10 – 20 years.

  Due to the reliable jointing method of Krah pipe with Electro-Fusion welding or extrusion welding, also the joints have a lifetime of 100 years.


krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  1. Lower pipe weight of Krah pipes

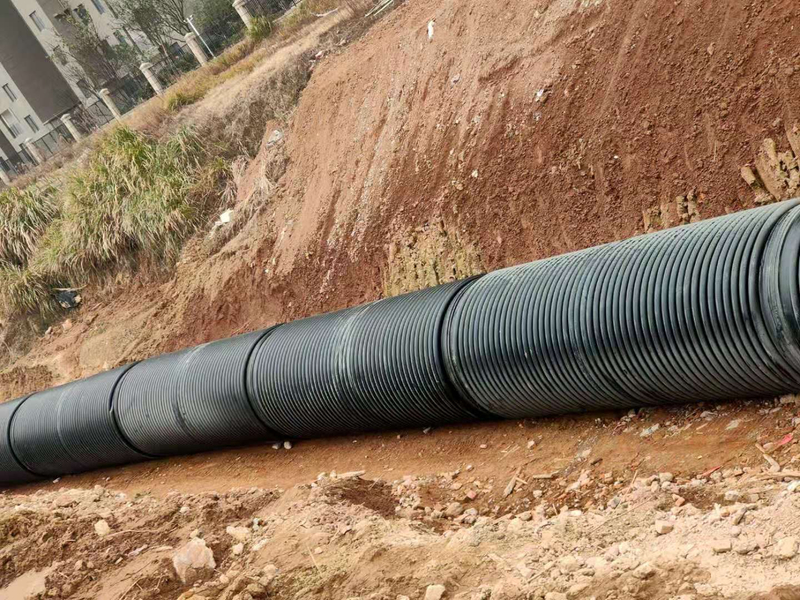

    The weight of Krah pipe is one of the major advantages compared to conventional pipe materials. This extremely low weight therefore allows a much easier and quicker installation of the pipes. Most of the handling can be done by a usual excavator on site.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  2. Homogenous pipeline

    All Krah pipe and fittings are made of the same material and joined to one homogenous piece. Not even the connections between the pieces pose a weak spot of the piping as they are joined by the electro-fusion method and therefore becoming a 100 % permanent tight joint.


    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipekrah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  3. Flexibility of Krah pipes

    Krah pipes is flexible that the deformations of the more than 30% can occur in particle with our signs of structural failure.


    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe

  4. Earthquake resistance of Krah pipes

    Even in areas, which are highly affected by earthquakes, Krah pipes are hardly damaged in comparison to pipes made of other materials. The flexibility of the PE/PP material allows a deformation without breaks or leakage.


  5. Minimum wall thickness of  Krah pipes

    In comparison to most of the other pipe materials. it is possible to produce comparatively low-weight pipes with the profile wall pipes system. But the pipe shall not only have the right stiffness, needed for bearing the load of the soil and the traffic while installed. Pipes also suffer of multiple strains during transport, storage, installation operation and cleaning.

       For the evaluation of the minimum waterway wall thickness different approaches were considered, taking into account all affecting factors, such as internal and external pressure, mechanical abrasion and penetration from the outside. Summing up all these impacts the minimum wall thickness of the waterway of Krah pipes can be calculated.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipekrah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  6. Support from the soil’s carrying capacity

    Rigid pipes have to bear the full carrying capacity of the earth loads. In case of Krah pipes, all loads are carried by the cooperation of the flexible pipe and the compressed soil. By lowering the pipe crown, the load concentration above the pipe decreases. As a result of this “wanted” deformation, the spring line will be moved outwards. An additional bedding pressure sets itself, supporting the pipe laterally. The loads are balanced around the pipe by the deformation. For that reason, Krah pipes can also be used for big loads, without losing the advantages of its light weight features. Since the pipelines are profiled on the outside, these profiles can fix the pipes in the soil. There will be no or very few axial extensions in the pipeline.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe     krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  7. Inspection friendly of Krah pipes

    The light colored inner surface is produced by co-extrusion. This light color of the inner surface ensure the easy inspection of the pipeline.


    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  8. Long laying length of Krah pipes

    Krah pipes have an installation length of 6 meters or 9 meters plus the socket. Some other pipes out of conventional materials have shorter dimensions and therefore need more connections, the installation of Krah pipes being less time.

    HDPE spiral pipe, HDPE spiral pipes, HDPE spiral pipe machine,krah pipe, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,HDPE spiral wound pipes, HDPE corrugated pipes


  9. Abrasion behavior of Krah pipes

    Krah pipes are among the most abrasion proof pipes. The Darmstadt testing diagram clearly shows that Krah pipes made out of PE/PP are in comparison with the other materials by far amongst the most abrasion resistant ones.


    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  10. Roughness of Krah pipes

    From a superior point of view the operational roughness value in ATV worksheet A 110 for all pipe materials, including plastic pipes, the losses resulting of wall roughness are determined uniformly with k = 0,1 mm.  The absolute roughness of plastic is between 0,0015 [mm] and 0,1 [m]2

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe

  11. Hydraulics of Krah pipes

    The advantageous hydraulic properties of Krah pipes are considerably and effectively supported by the laying length and associated low quantity of pipe joints as well as well-formed fittings, which are therefore flow-beneficial.


    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe

  12. Chemical corrosion resistance of Krah pipes

    Krah pipes are highly resistant to aggressive chemical environments. Further it is externally resistant to aggressive soil (PH value 1.0 - 5.0). Krah pipes are resistant externally and internally to aggressive chemicals.


  13. UV-resistance of Krah pipes

    Commonly most natural materials and other plastics are degraded by weathering effects, particularly by the combined impact of shortwave ultraviolet radiation in sunlight and atmospheric oxygen.

    Black Krah pipes are permanently resistant to atmospheric corrosion and UV radiation. Thus the pipes can be used and stored outside without the pipe material being damaged.


    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe


  14. Resistance to microorganisms, rodents and termites

    The smooth round surface of plastic pipes does not give the teeth of rodent’s sufficient hold to cause damage. Moreover, even in termite-affected countries no damage to pipelines made of polyethylene by termites has ever been occurred. Polyethylene and polypropylene are not nutrient media for bacteria, fungi and spores, so that the material is resistant to all forms of microbial attack as well as both sulphurous acid and sulphates.

    Assessments under food legislation Krah pipes are suitable for the transportation of mineral water. They have no tainting effect


  15. Jointing of Krah pipes

    Krah pipes suit any kind of pipe connections, due to the properties of HDPE. All Krah pipes and fittings can be delivered with different joint systems, mainly determined on the basis of the application. The pipe ends are equipped accordingly and integrated directly in the pipe. The most recommend joint is electrical fusion welding and rubber ring. Also such as flange connection and hand extrusion welding connection is used accordingly.

    krah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipekrah pipe line,Krah pipes, krah pipe machine, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe
