PP-HM Spiral Wound Gravity Pipes

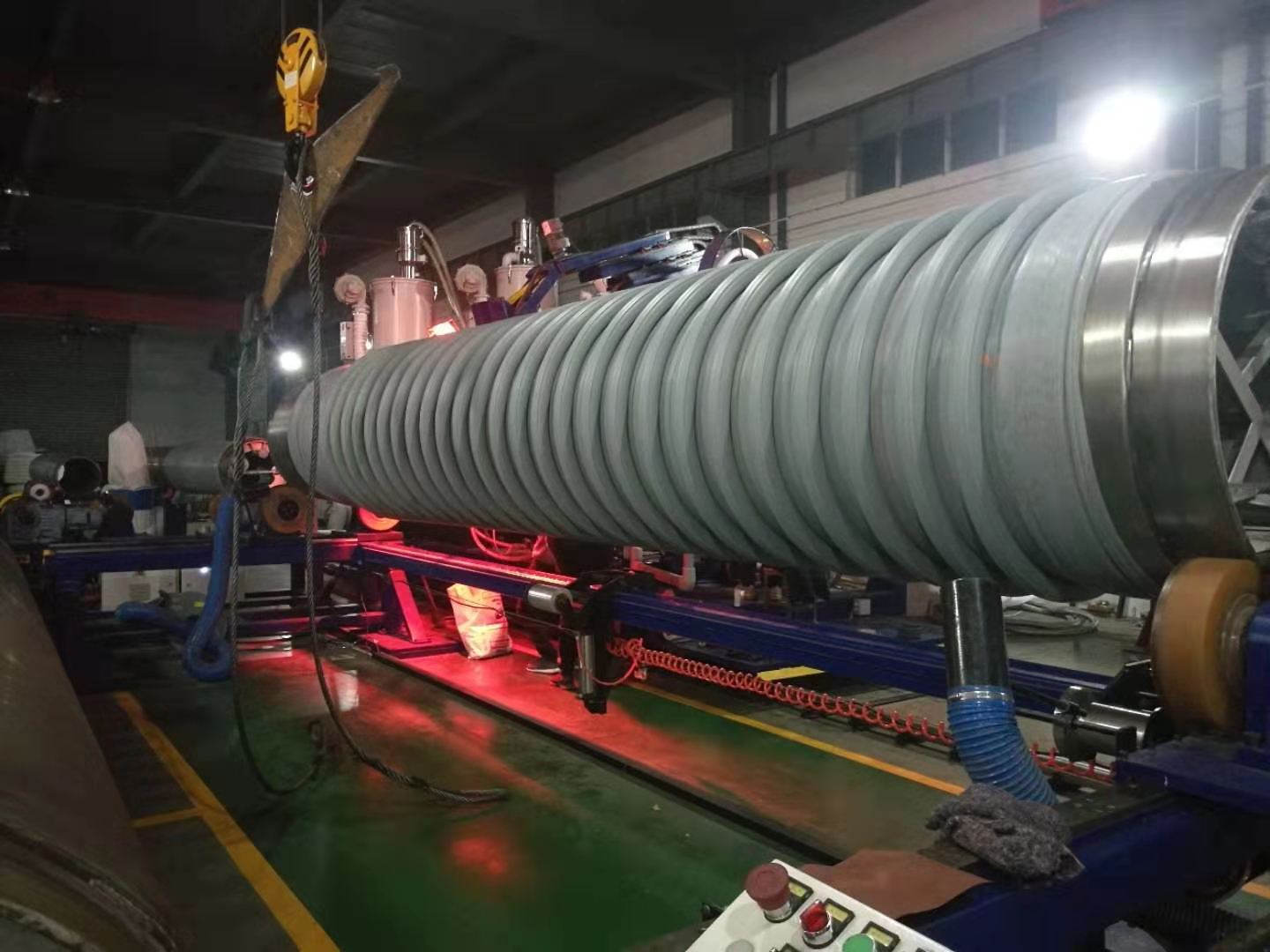

PP -HM Spiral Profile Wound Pipe Machine & Gravity Pipe Systems

    Engineered to resolve the most demanding utility and industrial infrastructure challenges, our advanced PP profile wound pipe systems deliver exceptional structural integrity and reliable fluid management capabilities. Modern underground networks require materials that can withstand shifting soils, heavy surface traffic, and corrosive effluents without degrading. Whether you are operating a precision-engineered PP -HM Spiral Profile Wound Pipe Machine to manufacture your own inventory, or sourcing finished conduits directly for major civil projects, these gravity pipe systems redefine long-term performance. The manufacturing process utilizes new-generation high modulus PP to manufacture these pipes, resulting in a product that feels exceptionally robust and rigid to the touch, yet maintains a surprising lightness when lifted. The available pipe diameter is from DN/ID300mm to DN/ID 4000mm, providing vast scalability. This extensive size range accommodates everything from localized urban drainage networks to massive attenuation tanks and deep underground culverts. To safely accommodate varying soil pressures and dynamic traffic loads—including the intense, repetitive stresses found beneath commercial airport runways and major logistics hubs—the ring stiffness is SN2, SN4, SN8, SN16 or according to customer requirements.

Core Material Innovation & Economic Viability

    The foundation of this superior piping solution lies in its advanced polymer matrix. PP-HM as this material offers double the e-modulus and allows to save up to 50 % material compared with the conventional PE. This drastic reduction in raw material usage not only lowers initial procurement expenses but also significantly decreases transportation weights, fuel consumption during transit, and on-site handling efforts. The high modulus polypropylene grants the pipes excellent low-temperature impact resistance; when struck or dropped during freezing winter installations, the material emits a solid, reassuring thud rather than a sharp crack, ensuring it will not fracture or turn brittle. With a designed service life safely exceeding 100 years, the total cost of ownership (TCO) is aggressively minimized. Municipalities and industrial facility managers benefit from zero-maintenance operation and extreme durability against environmental stress cracking.

Structural Design & Comprehensive Applications

   The winded profile pipes are designed to reach a high ring stiffness with a low material weight. By optimizing the cross-sectional geometry through advanced helical extrusion, the pipe walls achieve maximum load-bearing capacity without unnecessary bulk. The most economic profile is the typical PR profile. It is with smooth inside and profiled outside wall covers all applications for high outside loads but just low inside pressure. The visually striking, prominent ribbed exterior firmly anchors the conduit into the surrounding trench backfill, preventing axial shifting and settling over time. Conversely, the glass-smooth, friction-reducing interior surface minimizes hydraulic resistance, preventing sediment buildup and allowing engineers to design networks with flatter gradients. The PP-HM allows not only to handle sewer or to store aggressive chemicals, it is also perfect for drinking water and food storage. Its non-toxic, highly chemical-resistant nature guarantees that zero harmful leachates enter the surrounding soil, actively preventing groundwater contamination while safely conveying sensitive fluids like potable water or industrial food-grade liquids.

Construction Efficiency & Joint Integrity

• Accelerated Installation Cycles: The remarkably low self-weight of the PP-HM material allows for the deployment of extra-long pipe sections. This reduces the number of joints required per run, dramatically shortening the overall construction timeline and minimizing the need for heavy lifting equipment on site.

• Versatile Connection Methods: Installers can utilize integrated electro-fusion welding, manual extrusion welding, or flexible mechanical connections. During the welding process, the molten polymer forms a perfect, uniform bead that cools into a solid, seamless bond.

• 100% Leak-Proof Guarantee: When properly welded, the joints exhibit the exact same structural strength and pressure rating as the main pipe body. This eliminates the risk of exfiltration into the surrounding environment or infiltration of groundwater into the municipal system.

• Trenchless Compatibility: The excellent stress-crack resistance and axial strength make these pipes highly suitable for trenchless rehabilitation projects, slip-lining, and horizontal directional drilling, minimizing surface disruption in congested urban areas.
