PST-4500
EAGLE
8477
HDPE Spiral Wound Tank Production Machine
The HDPE spiral wound tank machine can produce the HDPE spiral wound tank with the diameter from DN600mm to DN5000mm and length up to 8000mm, with EAGLE seamless spiral winding technology what is most cost-efficient method for the manufacturing of large diameter spiral tanks. The HDPE spiral tank wall thickness can be more than 150mm. This machine is fully computer controlled and stepped wall thickness tank can be produced automatically.
The HDPE spiral tank can be made from different grade of high-density polyethylene and polypropylene. The machine can be upgraded to produce special double wall structure tank with leakage control for chemical storage tank.

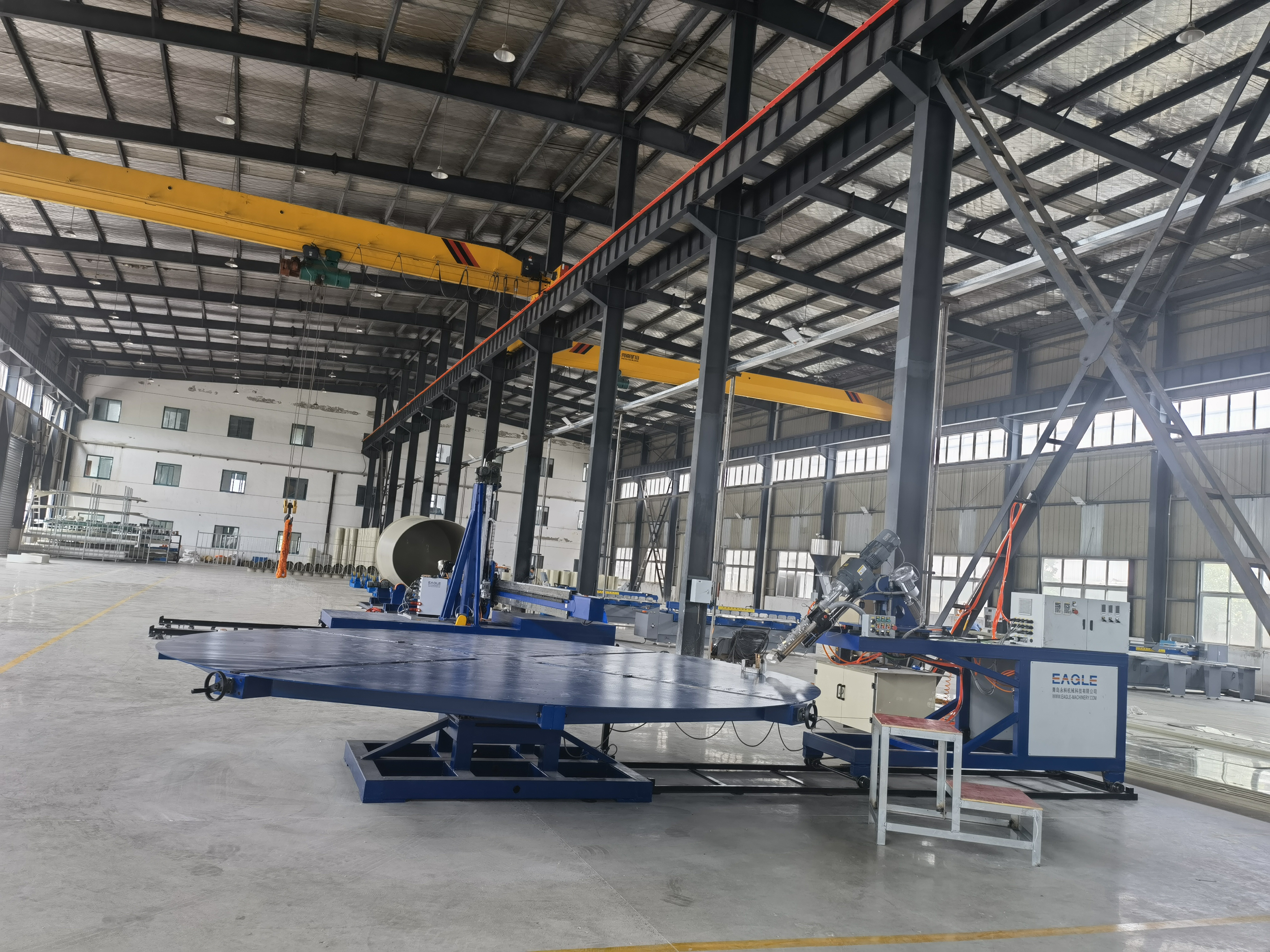

With advanced automatic welding machine, the bottom and cover can be welded automatically. The welding seam is uniform and strong to avoid any leakage.
Main Feature of HDPE or PP spiral tank machine
· Tank diameters: DN/ID 600 mm up to DN/ID 5000 mm
· Tank length: 6-8 m
· Wall thickness: up to 150mm
· Material: HDPE, PP-HM, PP-B, PP-H, PVDF
· Output: 300-600kg/h
· Application: chemical storage tank, chemical process tank, scrubber, silo for food and grain storage tank, water storage tank, CO2 Stripper, storm retention tank, etc
The HDPE spiral tank for chemical storage. HDPE spiral tanks are innovative thermoplastic storage vessels manufactured by fabricating HDPE spiral pipe or HDPE spiral sleeve. The raw material is high density polyethylene (HDPE, OR PE-HD)
The volume of HDPE spiral storage tanks can be more than 150m3. The HDPE spiral tanks will not leak, rust chip or corrode and are durable enough to withstand extreme service environments and harsh outdoor weather.
Features of HDPE spiral tanks:
Chemical & Corrosion Resistance
Light in weight
Abrasion Resistance
Leak Proof
Easy to clean & maintain
High Mechanical Strength
Good resistance to weather
Great insulating qualities
Less maintenance
Application of HDPE spiral tanks:
Ideal for chemical storage at high temperatures [-40°C TO +90°C(HDPE) / +110°C(PP)].
Transportation Vessels
Acid Pickling tanks
Water Treatment tanks
Acid & Chemical storage tanks
Scrubber Recirculation tanks
Reaction Vessels
Volume of HDPE or PP Spiral Tank m3
DN\H | 2m | 3m | 4m | 5m | 6m | 7m | 8m | 9m | 10m | 11m | 12m |
1000 | 1.6 | 2.4 | 3.1 | 3.9 | 4.7 | 5.5 | 6.3 | 7.1 | 7.9 | 8.6 | 9.4 |
1200 | 2.3 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 | 9.0 | 10.2 | 11.3 | 12.4 | 13.6 |
1500 | 3.5 | 5.3 | 8.0 | 8.8 | 10.6 | 12.4 | 14.1 | 15.9 | 17.7 | 19.4 | 21.2 |
1600 | 4.0 | 6.0 | 8.0 | 10.1 | 12.1 | 14.1 | 16.1 | 18.1 | 20.1 | 22.1 | 24.1 |
1800 | 5.1 | 7.6 | 10.2 | 12.7 | 15.3 | 17.8 | 20.4 | 22.9 | 25.4 | 28.0 | 30.5 |
2000 | 6.3 | 9.4 | 12.6 | 15.7 | 18.8 | 22.0 | 25.1 | 28.3 | 31.4 | 34.6 | 37.7 |
2400 | 9.0 | 13.6 | 18.1 | 22.6 | 27.1 | 31.7 | 36.2 | 40.7 | 45.2 | 49.8 | 54.3 |
2500 | 9.8 | 14.7 | 19.6 | 24.5 | 29.5 | 34.4 | 39.3 | 44.2 | 49.1 | 54.0 | 58.9 |
2800 | 12.3 | 18.5 | 24.6 | 30.8 | 36.9 | 43.1 | 49.3 | 55.4 | 61.6 | 67.7 | 73.9 |
3000 | 14.1 | 21.2 | 28.3 | 35.3 | 42.4 | 49.5 | 56.5 | 63.6 | 70.7 | 77.8 | 84.8 |
3200 | 16.1 | 24.1 | 32.2 | 40.2 | 48.3 | 56.3 | 64.3 | 72.4 | 80.4 | 88.5 | 96.5 |
3500 | 19.2 | 28.9 | 38.5 | 48.1 | 57.7 | 67.3 | 77.0 | 86.6 | 96.2 | 105.8 | 115.5 |
4000 | 25.1 | 37.7 | 50.3 | 62.8 | 75.4 | 88.0 | 100.5 | 113.1 | 125.7 | 138.2 | 150.8 |
4500 | 31.8 | 47.7 | 63.6 | 79.5 | 95.4 | 111.3 | 127.2 | 143.1 | 159.0 | 174.9 | 190.9 |
