HDPE Spiral Wound Pipe Machine

HDPE spiral pipe machine to produce the large diameter spiral HDPE corrugated pipes from DN300 to DN4000mm. The HDPE spiral corrugated pipes can be used for non-pressure pipe such as sewerage pipe, drainage pipe , marine structured wall pipe, or pressure pipe.
Availability:
Quantity:
  • PSW-4500

  • EAGLE

  • 8477

krah pipe, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,profileen pipe

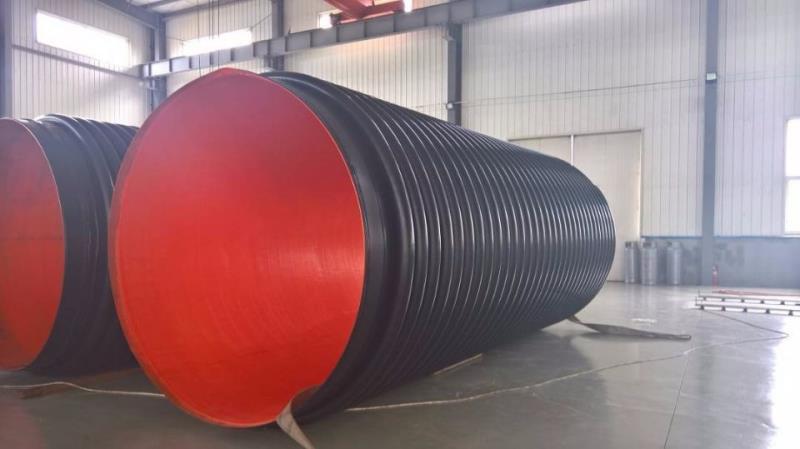

    The HDPE spiral wound pipe machine can produce the HDPE spiral wound pipe and fittings, manhole from DN/ID300mm to DN/ID 4500mm. The main applications for the final HDPE spiral corrugated pipes products are non-pressure applications, such as drainage pipe, storm water outfall pipe, sewerage pipe, rain water rentation tank, marine structured wall pipe and chemical storage tanks as well as low-pressure applications like irrigation systems,etc.


  The great advantage of  HDPE spiral corrugated pipe machine is that production is flexible. One HDPE spiral corrugated pipe machine can produce the spiral profile pipe from DN300 to DN4500 with very short changing time for the production from DN300 to DN4500mm. It also can produce different type and ring stiffness classes spiral corrugated pipe from SN2 to SN32, according to ISO9969, DIN16961.


Main Feature of HDPE Spiral Corrugated Pipes Machine

· HDPE spiral corrugated pipe diameters: DN/ID 300 mm up to DN/ID 4500 mm

· Pipes length: 6 to 9 m, with integrated socket and spigot or according to customer's requirement.

· Material: High density Polyethylene, Polypropylene (PP-HM, PP-B, PP-H)

· Output: 700-1400kg/h

· Application: Drainage Pipe systems, Sewage pipe systems, Industrial pipes, Relining, Outfall pipes, chemical tank, marine structured wall pipe, storm water rentention tank



Krah piHDPE spiral corrugated pipe machine,HDPE spiral pipe machine,krah pipe, krah machine, helical extrusion, profilline pipe,profileen pipe, profilline machine,structured wall non-pressure pipespes, krah machine, krah pipe machine, Krah profiled pipe, HDPE spiral corrugated pipe, helically extrusion line

 Krah production technology is a helical extrusion (spiral wound)
