Engineered for demanding underground utility and heavy industrial environments, the PP-HM Spiral Wound Gravity Pipes is of high ring stiffness and lower weight compared to HDPE. Manufactured from high modulus PP to manufacture these pipes, this advanced polymer matrix provides double the e-modulus of standard polyethylene. Touching the surface reveals a rigid yet resilient tactile feedback, an indicator of its structural integrity and its capacity to withstand severe external loads without brittle failure.
The dimensional flexibility of this PP spiral profile pipe systems is vast, accommodating exacting project requirements with various stiffness classes which are designed for utility and industrial applications. Key parameters include:
Diameter Range: Diameter is precisely from DN/ID300mm to DN/ID 5000mm, ensuring exact volumetric matching for large-scale fluid transport.
Load Capacity: The ring stiffness is SN2, SN4, SN8, SN16 or according to customer requirements, adapting to varying trench depths and surface traffic loads.
Exceptional Durability: Because of the superior chemical stability inherent to the PP-HM material, the pipe exhibits outstanding resistance to aggressive acid and alkali corrosion. The non-metallic nature completely eliminates the risk of electrochemical degradation, ensuring a reliable underground service life that can easily exceed 100 years.
The spiral profile wound pipes are meticulously designed to reach a high ring stiffness with a low material weight. By utilizing the enhanced mechanical properties, PP-HM as this material offers double the e-modulus and allows to save up to 30 % material compared with the conventional PE systems, without sacrificing any structural integrity. The most economic profile is the typical PR profile. It is with smooth inside and profiled outside wall covers all applications for high outside loads but just low inside pressure. The external ribs effectively transfer and distribute soil and traffic loads into the surrounding backfill, preventing localized stress concentrations.
From a hydraulic perspective, the extremely smooth inner surface achieves an impressive Manning coefficient of approximately 0.009. This near-frictionless flow path drastically improves fluid transit efficiency, prevents sediment accumulation, and offers excellent self-cleaning capabilities even at low gradient slopes. Consequently, the system maintains its maximum flow capacity over decades, pump energy requirements are minimized in forced systems, and long-term maintenance interventions for blockage clearing are significantly reduced.

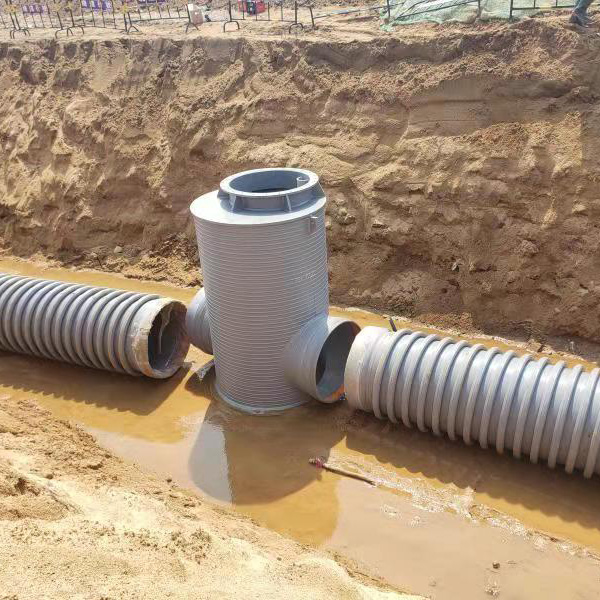

Handling and positioning large-diameter infrastructure often presents significant logistical challenges, but this engineered pipe system transforms the site workflow. The pipe's weight is merely 1/5 of a comparable traditional concrete pipe. This dramatic reduction in mass often eliminates the need for heavy, specialized lifting equipment, allowing site crews to maneuver, align, and position sections with greater ease, speed, and safety.
Connection integrity is paramount for underground networks. The system supports both socket electrofusion and secure rubber ring sealing methods. Electrofusion creates a homogeneous, fused joint that is as strong as the pipe body itself. These joining techniques not only accelerate the overall installation speed by up to 50%, but they also guarantee a zero-leakage network, protecting the surrounding soil and groundwater from contamination. Furthermore, the intelligent sizing allows for nesting transport—where smaller diameter pipes are safely sleeved inside larger ones during transit. This telescopic loading strategy maximizes shipping container volume, effectively reducing logistics, storage footprint, and freight expenses by up to 30%.
PP-HM spiral profile wound pipe is widely used for drainage pipes system, sewerage pipes system, sea outfall pipe, storm water out fall, rain rentantion tank, chemical tank, etc. It serves as the dependable backbone for municipal networks where structural stability and leak-free performance are non-negotiable. It is also highly effective for demanding marine environments, where constant exposure to saltwater and wave action requires absolute corrosion resistance.
Beyond standard water management, the high chemical purity and thermal resistance make it an ideal choice for industrial chemical tanks and aggressive wastewater treatment facilities handling fluctuating pH levels. Notably, the material is completely non-toxic, resists biological growth, and imparts no taste or odor to the conveyed fluid. The PP-HM allows not only to handle sewer or to store aggressive chemicals, it is also perfect for drinking water and food storage. This remarkable versatility ensures uncompromising reliability across all civil and industrial deployments.
