HDPE Spiral Pipe Production machine for Drainage Pipe

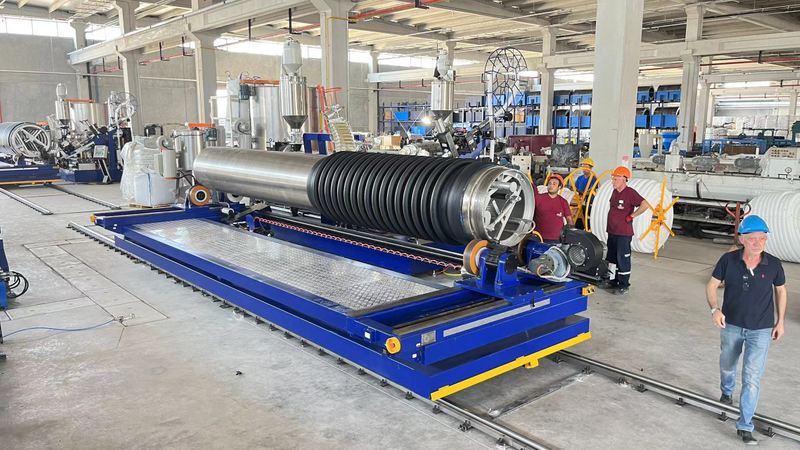

HDPE spiral pipe prouduction machine to produce the large diameter HDPE spiral corrugated pipe from DN300 to DN4000mm. The HDPE spiral corrugated pipe can be used for non-pressure pipe such as sewerage pipe, drainage pipe , marine structured wall pipe, or pressure pipe.
Size:
Availability:
Quantity:
  • PSW-4500

  • EAGLE

  • 8477

                                               6

      Theadvantage of this HDPE spiral wound pipe production machine is that production is very flexible. One machine can produce the pipe from DN300 to DN4500. The changing time is very short with variety of wall structure. The pipe length can be from 1 meter to 9 meters according to requirement with any international standards.

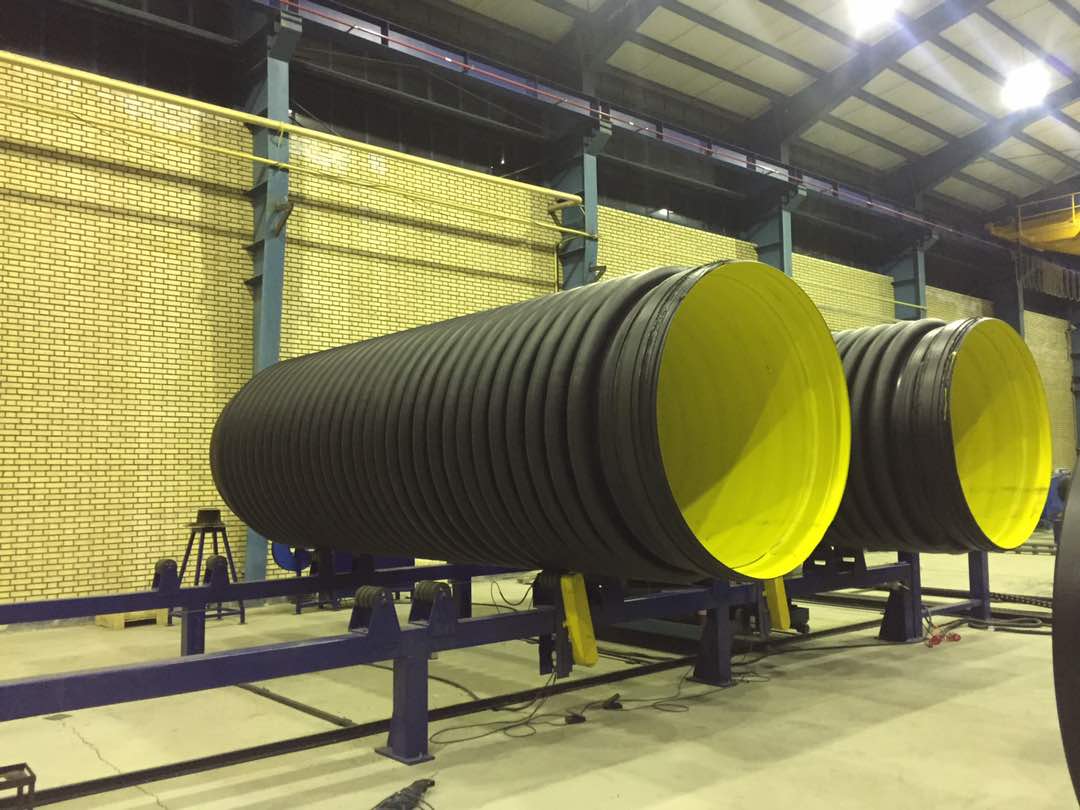

     The main applications for the HDPE spiral wound pipe products are low and non-pressure applications like for sewer, drainage, storm water, sea outfall/intake,marine structrue wall pipe, irrigation systems and or even chemical storage tanks. The software of PIPEFINDER can help to produce the pipes, fittings, and manholes according to standard and project requirements.


Main Feature of HDPE Spiral Pipe Production machine


· HDPE spiral corrugated pipe diameters: DN/ID 300 mm up to DN/ID 4500 mm

· HDPE spiral corrugated pipe length: 6 to 9 meters, with integrated socket and spigot

. Pipe ring stiffness: SN1 to SN32 or above, according to ISO9969

· Output: 700-1400kg/h (HDPE, PP-HM, PP-B, PP-H)

· HDPE spiral pipe Application: Drainage Pipe systems, Sewage pipe systems, Industrial pipes, Relining, Outfall pipes, chemical storage tank, marine structured wall pipe, manhole, etc.



 HDPE spiral pipe wall structure(PR, OP, CPR, SQ, VW, SP)

PR

OP

CPR

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

PR profile achieve high stiffness with low weight. This is the   most common profile for sewer and water drainage applications.

OP profile can achieve greater stiffness with a comparatively low   weight for sewer and drainage application.

One more Water way layer on top of CPR profile, can achieve higher   stiffness and lower weight for sewer and drainage application.


VW

SQ1

SQ2-4

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

HDPE spiral pipe production line

HDPE spiral pipes, HDPE spiral corrugated pipe, HDPE spiral pipe production line, HDPE spiral pipe machine, HDPE spiral pipe extrusion line, HDPE spiral pipe extruder

Solid pipe with a smooth inner and outer surface. These pipes can   be produced with a wall thickness of 5mm to 250mm for pressure pipe and storage   tank.

This profile option has a smooth inner and outer surface,   including internal profile to one layer mainly for fittings, manhole, double   wall tank, etc.

Another one or several SQ1 profile layers ensure the very high   ring stiffness for large diameter and special application.
