HDPE Spiral Tank Production Line

High efficiecy HDPE spiral tank production machine from DN300 to DN5000mm. Output is 400kg/h to 700kg/h
Availability:
Quantity:
  • PST-4500

  • EAGLE

  • 8477

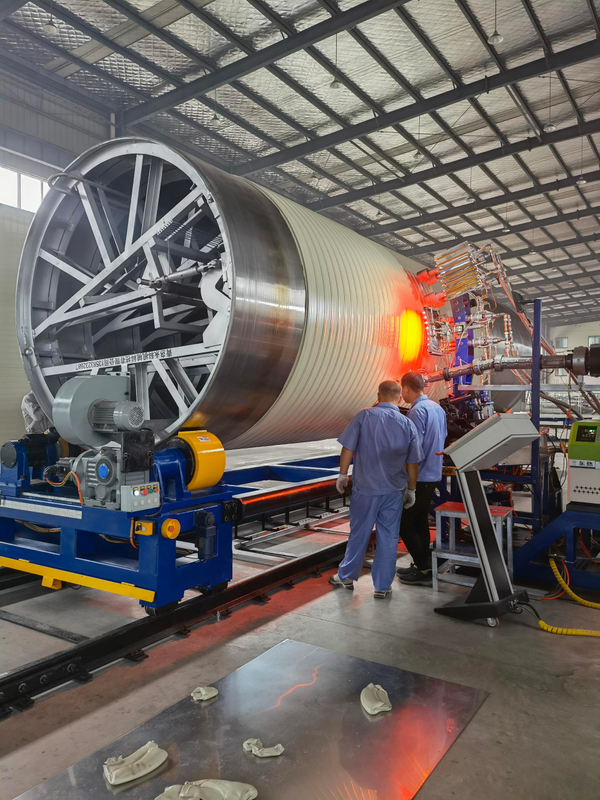

HDPE or PP Spiral Tank Production Machine


     We supply HDPE or Spiral Tank production machine to produce the HDPE spiral tank from DN600 to DN5000mm. This technology ensures the tank strength and reliable. It can produce the plastic spiral tank with variety of wall thickness according the height, so the HDPE spiral tank production machine can save material and increase the efficiency. The bottom and top is welded by automatic welder to guarantee the reliable welding and without leakage.


    With unique seamless winding technology, the wall thickness can be more than 120mm. The HDPE spiral wound tank machine technology guarantees that there is no tension in spiral tank wall, since the tension is eliminated during the production.



    The HDPE spiral tank production machine equipped with one or two sets of  high output extruders to produce the function inner layer chemical tank for special application such as semiconductor industry, steel industry,etc. With upgradation, the HDPE spiral wound tank machine can produce dual-wall spiral tank to make double safe guarantee.


    With advanced automatic HDPE spiral tank welding machine, the bottom and cover can be welded automatically. The welding seam is uniform and strong. It avoids the disadvantage of manual welding.


Main Feature of HDPE Spiral Tank Production Machine


· HDPE spiral tank diameter: DN/ID 600 mm up to DN/ID 5000 mm

· HDPE spiral tank length: 6 to 9 m

· Wall thickness: 120mm(Max)

· Material: PP-HM, PP-B, PP-H, HDPE, PVDF

· Output: 300-800kg/h

· Application: chemical tank, storage tank,spray scrubber,scrubbing column,  sprial reaction vessal, water tank, spiral reactor vessal, chemical fumes tower, chemical reactors


HDPE spiral tank, HDPE spiral wound tank machine,HDPE/PP Spiral Winding Tank Machine,forbes innatank    HDPE spiral tank, HDPE spiral wound tank machine,bauku pipe, bauku machine, spiral corrugated pipe, profile wound pipe, formoplast tank

Volume of HDPE or PP Spiral Wound Tank  m3

DN\H

2m

3m

4m

5m

6m

7m

8m

9m

10m

11m

12m

1000

1.6

2.4

3.1

3.9

4.7

5.5

6.3

7.1

7.9

8.6

9.4

1200

2.3

3.4

4.5

5.7

6.8

7.9

9.0

10.2

11.3

12.4

13.6

1500

3.5

5.3

8.0

8.8

10.6

12.4

14.1

15.9

17.7

19.4

21.2

1600

4.0

6.0

8.0

10.1

12.1

14.1

16.1

18.1

20.1

22.1

24.1

1800

5.1

7.6

10.2

12.7

15.3

17.8

20.4

22.9

25.4

28.0

30.5

2000

6.3

9.4

12.6

15.7

18.8

22.0

25.1

28.3

31.4

34.6

37.7

2400

9.0

13.6

18.1

22.6

27.1

31.7

36.2

40.7

45.2

49.8

54.3

2500

9.8

14.7

19.6

24.5

29.5

34.4

39.3

44.2

49.1

54.0

58.9

2800

12.3

18.5

24.6

30.8

36.9

43.1

49.3

55.4

61.6

67.7

73.9

3000

14.1

21.2

28.3

35.3

42.4

49.5

56.5

63.6

70.7

77.8

84.8

3200

16.1

24.1

32.2

40.2

48.3

56.3

64.3

72.4

80.4

88.5

96.5

3500

19.2

28.9

38.5

48.1

57.7

67.3

77.0

86.6

96.2

105.8

115.5

4000

25.1

37.7

50.3

62.8

75.4

88.0

100.5

113.1

125.7

138.2

150.8

4500

31.8

47.7

63.6

79.5

95.4

111.3

127.2

143.1

159.0

174.9

190.9
