HDPE double walled corrugated pipes machine

HDPE/PP/PVC Double Wall Corrugated Pipe Production Line Overview

The HDPE/PP/PVC double wall corrugated pipe production line represents a significant leap in plastic extrusion manufacturing, specifically engineered to deliver consistent, heavy-duty output for large-scale industrial demands. When standing next to this machinery on the factory floor, operators experience the steady, rhythmic vibration of the powerful extruders as they seamlessly transform raw polymer granules into perfectly formed, durable piping systems. Designed for absolute precision, this manufacturing setup minimizes raw material waste while maximizing daily throughput. Facility managers will appreciate the intuitive layout and the solid, vibration-dampening chassis that ensures long-term operational stability even under continuous maximum load. Operators monitor the entire transformation through bright, responsive touch-screen interfaces that display real-time metrics. The physical footprint of the machinery is optimized for efficient space utilization, allowing for safe and unobstructed movement of personnel and materials. By maintaining exact temperature profiles across multiple heating zones, the system ensures that every centimeter of the extruded pipe meets rigorous structural standards, resulting in fewer rejected batches and a highly predictable manufacturing cycle.

Engineering Applications & Finished Pipe Performance

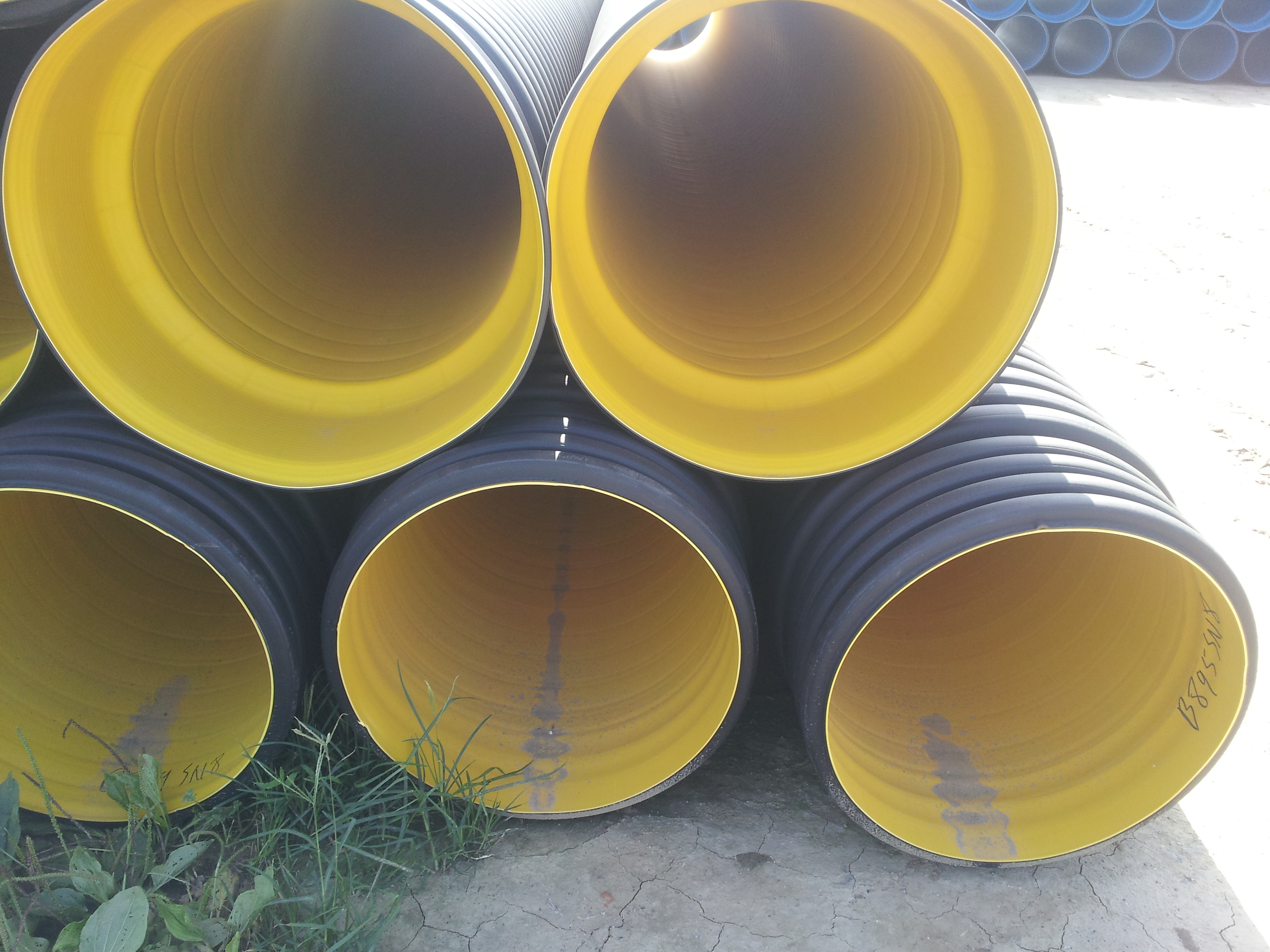

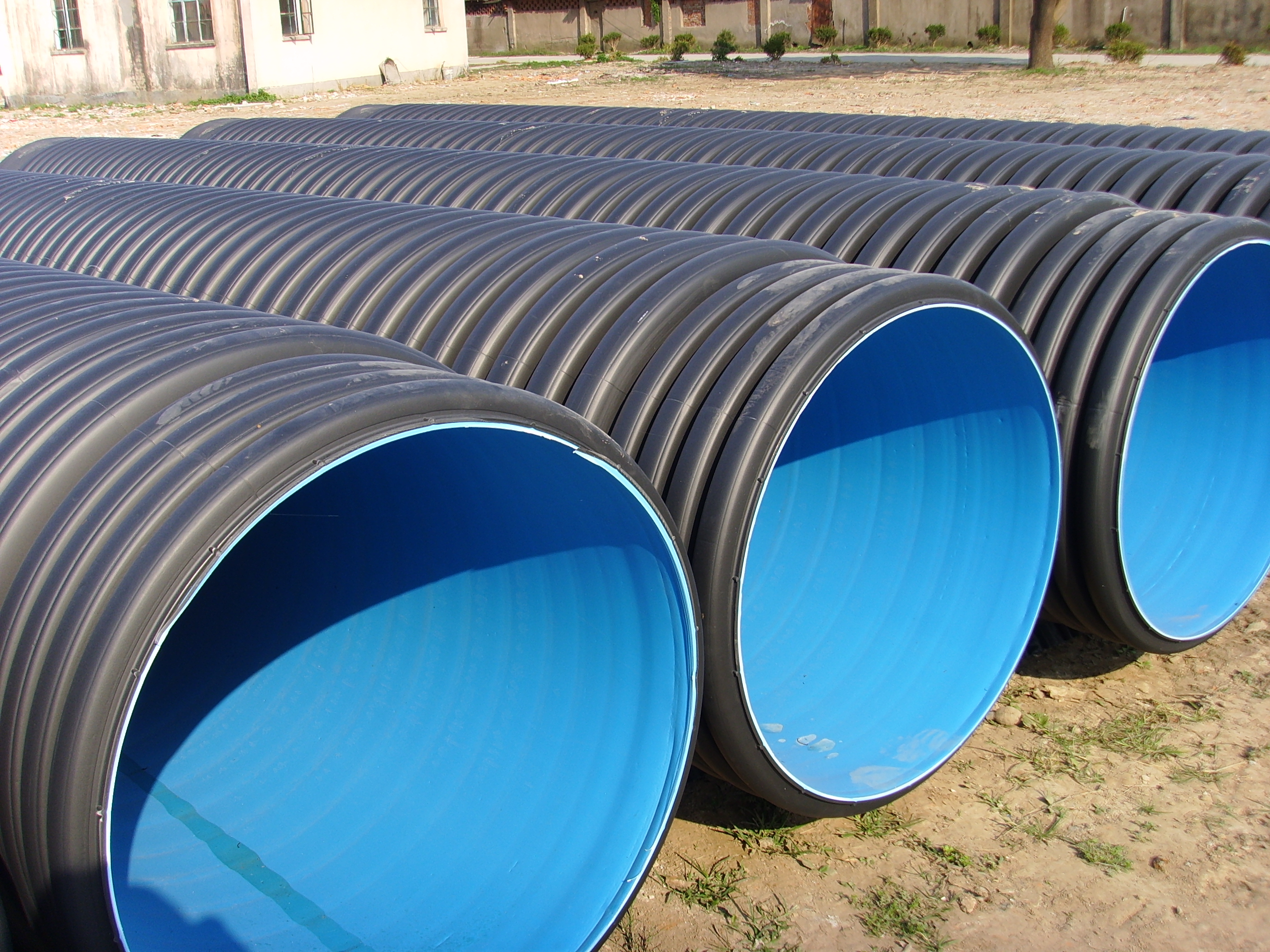

The capabilities of this extrusion machinery extend far beyond standard drainage and sewerage pipe manufacturing. The resulting double-layer socket HDPE and PP corrugated pipes exhibit exceptional ring stiffness, superior compressive strength, and remarkable impact resistance. Upon physical inspection, the finished pipes feature a distinctively smooth, glossy inner wall that significantly reduces fluid friction, paired with a deeply profiled outer corrugation that anchors firmly into surrounding soil or concrete.

These physical characteristics make the output ideal for demanding environments. When utilized in expansive agricultural irrigation networks, the pipes deliver consistent water pressure without the risk of internal scaling or biological buildup. In desert sand control engineering, the tough outer shell withstands the abrasive nature of shifting sands and extreme temperature fluctuations. Furthermore, as protective underground cable jacketing, the polymer matrix provides excellent electrical insulation and prevents moisture ingress, safeguarding critical communication and power grids. Because the machinery can seamlessly switch between different polymer profiles, facility operators can quickly adapt to changing market demands, supplying diverse engineering sectors with piping solutions that resist aggressive chemical corrosion over decades of buried service.

Core Features & Intelligent Automation

At the heart of these production lines is a deep commitment to intelligent automation and energy-efficient processing. Depending on specific material requirements, the system is equipped with either a high-efficiency single screw extruder specifically calibrated for HDPE and PP, or a specialized twin screw extruder optimized for PVC formulations. The corrugators are meticulously designed in either vertical or horizontal structures, utilizing precise vacuum forming paired with rapid water or air cooling to instantly solidify the pipe geometry.

• Intelligent Control Architecture: The integration of internationally recognized Siemens PLC architecture and ABB frequency inverters guarantees that the computer control system executes commands with microsecond precision. This electrical reliability translates directly into steady running conditions and high output rates with minimal manual intervention.

• Optimized Thermal Management: The advanced water cooling system accelerates the polymer curing process. This rapid heat dissipation not only boosts production speeds but also substantially lowers the unit energy consumption for a more sustainable and cost-effective operation.

• Integrated Online Belling: When configuring the PVC double wall corrugated pipe production line, the inclusion of an automatic belling machine allows for the creation of precise, leak-proof sockets directly on the line. This online integration eliminates the need for secondary processing steps, drastically reducing labor requirements.

• Modular Component Design: Critical extrusion and molding modules are designed for rapid interchangeability, minimizing downtime during maintenance or when switching pipe diameter specifications.

Quality Assurance & Global Technical Support

Investing in heavy industrial machinery requires absolute confidence in both the equipment's longevity and the manufacturer's backing. This corrugated pipe production line undergoes rigorous scrutiny before it ever leaves the factory floor. Each extrusion unit is subjected to 100% comprehensive performance testing under simulated maximum-load conditions, measuring output consistency, temperature stability, and mechanical vibration. This exhaustive verification process ensures zero risk upon delivery. The equipment proudly carries international certifications, including CE, ISO9001, and SGS, verifying its strict compliance with global manufacturing and safety directives.

Beyond the physical machinery, a comprehensive global technical support framework forms the backbone of the ownership experience. Dedicated engineering teams are available to provide on-site installation, precise mechanical calibration, and thorough operational training for facility staff, ensuring a smooth transition from delivery to full-scale production. Should any operational queries arise, a 24-hour online technical support network and a robust, readily available spare parts inventory guarantee that production lines remain active, profitable, and completely worry-free throughout their operational lifespan.
