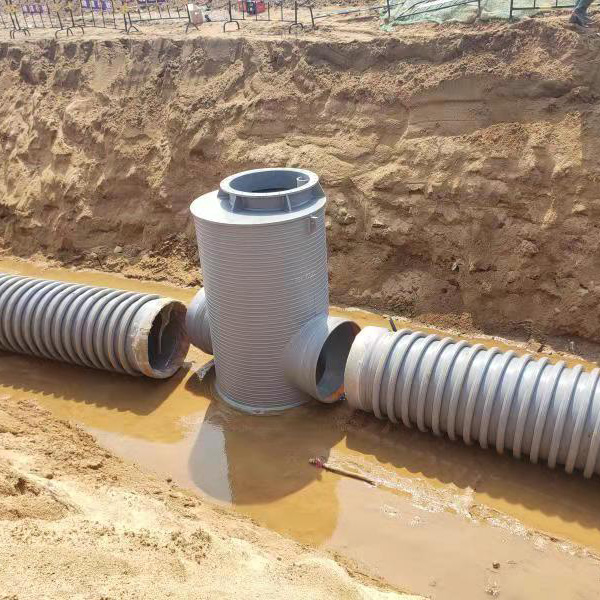

PP-HM Spiral Profile Wound Pipe

PP Spiral Wound Profile Pipe Overview

PP-HM Spiral Wound Gravity Pipes is of high ring stiffness and lower weight compared to HDPE. Engineered for demanding utility and industrial environments, these piping solutions deliver exceptional structural integrity. The precise extrusion process ensures a consistent wall thickness, giving the pipe a rigid yet manageable feel during transport and installation. By leveraging advanced manufacturing techniques, the resulting infrastructure components provide a reliable, long-lasting conduit for critical fluid management across diverse terrains and varying ground conditions.

Advanced PP-HM Material & Economic Benefits

PP-HM as this material offers double the e-modulus and allows to save up to 30 % material compared with the conventional PE. In certain highly optimized project configurations, this exceptional material efficiency can even reach up to 50%, depending on the specific structural requirements. This substantial reduction in polymer usage translates directly into lowered transportation expenses, less heavy machinery required for on-site handling, and significantly improved overall project economics. Furthermore, the high modulus nature of the polypropylene ensures that despite the lighter weight, the pipes exhibit extraordinary resistance to ground movement and external pressure. Project developers can achieve superior mechanical reliability for underground networks while simultaneously reducing the carbon footprint associated with manufacturing and logistics, making it an economically and environmentally sound choice.

Structural Design & Ring Stiffness Capabilities

The spiral profile wound pipes are designed to reach a high ring stiffness with a low material weight. The most economic profile is the typical PR profile. It is with smooth inside and profiled outside wall covers all applications for high outside loads but just low inside pressure. When inspecting the installed systems, the smooth internal surface visibly accelerates fluid velocity, preventing the accumulation of debris and reducing the need for frequent maintenance flushing.

PP spiral profile pipe systems with various stiffness classes which are designed for utility and industrial applications. It is made from high modulus PP to manufacture these pipes. Diameter is from DN/ID300mm to DN/ID 5000mm. The ring stiffness is SN2, SN4, SN8, SN16 or according to customer requirements. Project engineers can specify the exact load-bearing capacity needed, ensuring that whether the pipe is buried under heavy traffic loads or deep underground, it maintains its circular integrity over decades of service.

Versatile Applications & Chemical Resistance

The PP-HM allows not only to handle sewer or to store aggressive chemicals, it is also perfect for drinking water and food storage. The material imparts no odor or taste, preserving the absolute purity of the stored resources. PP-HM spiral profile wound pipe is widely used for drainage pipes system, sewerage pipes system, sea outfall pipe, storm water out fall, rain retention tank, chemical tank, etc. The robust chemical resistance ensures that corrosive effluents, industrial byproducts, and saline environments do not degrade the pipe wall. This resilience offers a maintenance-free lifespan that significantly outperforms traditional concrete or metal alternatives, which are prone to rust and chemical erosion over time. Whether deployed in deep-sea outfalls subjected to constant saltwater exposure or in municipal rainwater harvesting setups, the structural stability remains uncompromised.

Engineering Installation & Global Standards

To ensure the long-term viability of large-scale infrastructure projects, the connection integrity of the piping system is paramount. These high-modulus polypropylene pipes support advanced joining techniques, including electrofusion and precision spiral welding. These methods create a homogeneous, zero-leakage joint that is as strong as the pipe itself. The welding process is straightforward, emitting a faint, distinct scent of melting polymer that signifies a secure thermal bond, allowing for rapid and reliable installation even in challenging, muddy trench conditions. The resulting joints are entirely flush, ensuring no disruption to the internal flow dynamics.

• International Compliance: The structural design and performance metrics strictly adhere to major international plastic piping standards, including EN13476 and ISO 21138, guaranteeing rigorous quality control for public works.

• Zero-Leakage Connections: Advanced electrofusion and spiral welding ensure seamless integration across the entire pipeline network, preventing groundwater contamination and protecting local ecosystems.

• Eco-Friendly Sustainability: The PP-HM material is fully recyclable, aligning perfectly with modern low-carbon construction practices and ecological protection initiatives for future-proof city planning.

By integrating these advanced piping solutions, municipalities and industrial developers actively contribute to sustainable stormwater management, securing resilient and reliable water infrastructure for future generations.
