High speed single wall corrugated pipe machine

Quantity:
  • SWP
  • EAGLE
  • 8477

    Single wall corrugated pipe production line

      Application:

      This machine produce PA/PE/PP/PVC single wall corrugated pipe.  It is of many functions such as anti-high temperature, corrosion-proof, wearable, high strength.

      It is used very popularly for electrical cable protection conduct, automobile, machinery, etc.

     Feature:

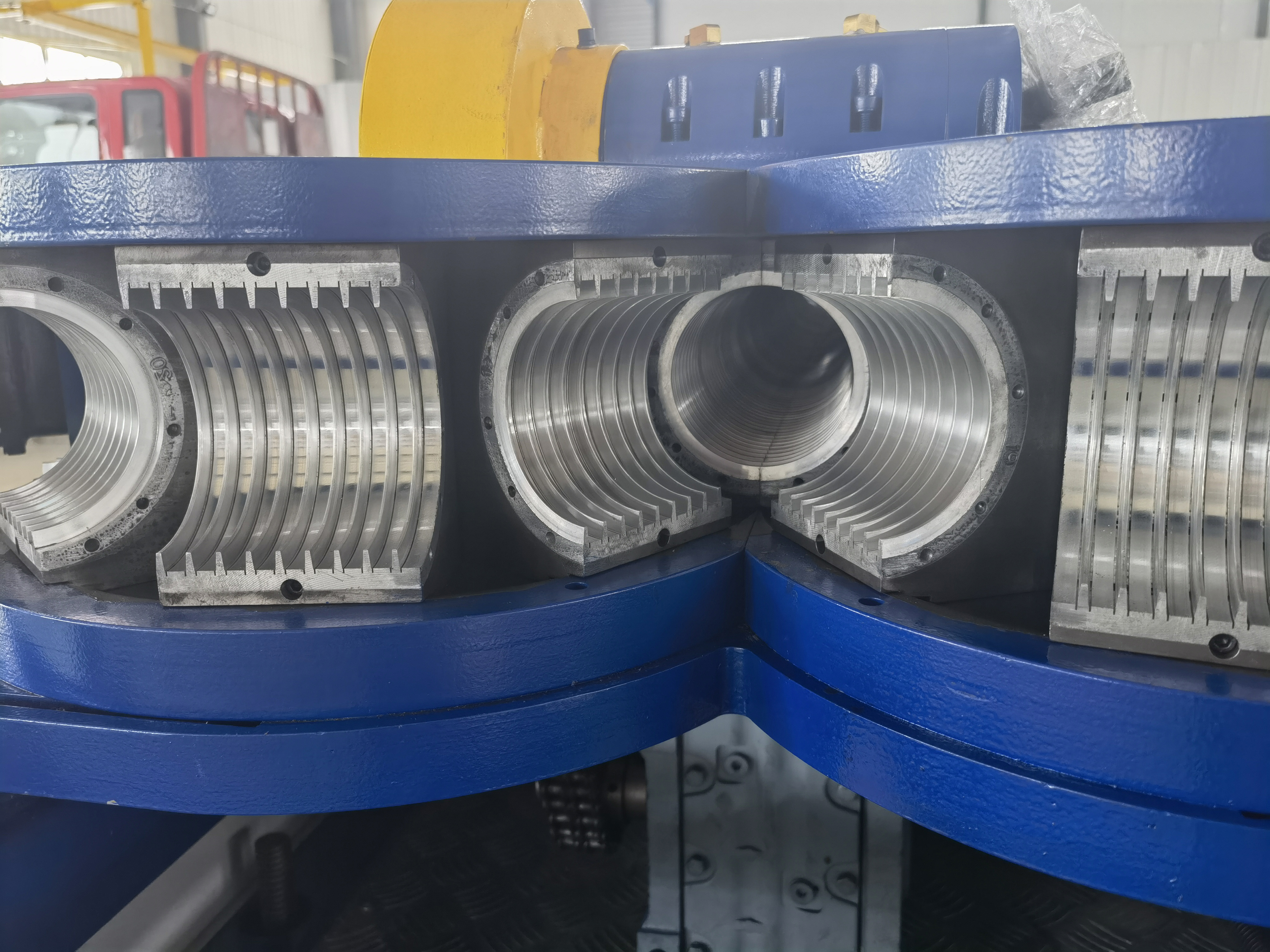

      Equipped with high speed corrugators, vacuum forming, with water cooling,

      Dual pipe with one moulds block, reduce the block cost and moulds block changing time, increase the efficiency.

      For EC120 corrugator, it can adoppted combined design aluminum block,vacuum forming, cooling fast, low investment. It is special design to produce the co-tube for Krah pipe, Bauku pipe, spiral profile wound pipe and maine structured wall pipe.
      These corrugators can work with Krah pipe machine, Bauku pipe machine, maintool machine. Even it can produe any kind of single wall corrugated pipe for electrical conduct, automobile industry, ventilator tube, etc.

corrugators, corrugated pipecorrugators, corrugated pipe


Model

EC-25-II

EC-50-II

EC-65

EC-80

EC120

Max. Outer diameter (mm)

25

56

65

80

120

Min. inner diameter (mm)

5

12

20

20

20

Max. Speed    (m/min)

30

30

35

35

20

Max. HDPE Output (kg/h)

60

100

160

200

240

Max. PVC output(kg/h)

90

120

180

260

280

krah pipe,krah machine, helically extrusion, bauku pipe, profilleen pipe, spirolite pipe, spiral corrugated pipe machine, profile pipes
