SWP-125
EAGLE
8477
1200
20
10
DN125

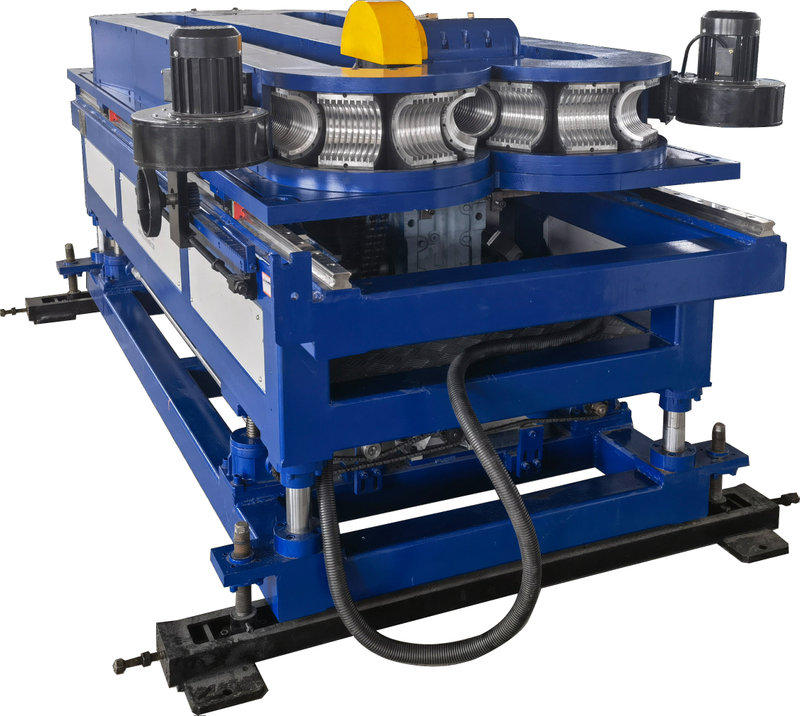

Single wall corrugated pipe extrusion line
Application:
This machine produce PA/PE/PP/PVC single wall corrugated pipe. It is of many functions such as anti-high temperature, corrosion-proof, wearable, high strength.
It is used very popularly for electrical cable protection conduct, automobile, machinery, etc.
Feature:
Equipped with high speed corrugators, vacuum forming, with water cooling,
Dual pipe with one moulds block, reduce the block cost and moulds block changing time, increase the efficiency.
For EC120 corrugator, it can adoppted combined design aluminum block,vacuum forming, cooling fast, low investment. It is special design to produce the co-tube for Krah pipe, Bauku pipe, HDPE spiral wound pipe and maine structured wall pipe.
These corrugators can work with Krah pipe machine, Bauku pipe machine, maintool machine. Even it can produe variety of single wall corrugated pipe for electrical conduct, automobile industry, draingage,etc.
Model | EC-25-II | EC-50-II | EC-65 | EC-80 | EC120 |
Max. Outer diameter (mm) | 25 | 56 | 65 | 80 | 125 |
Min. inner diameter (mm) | 5 | 12 | 20 | 20 | 20 |
Max. Speed (m/min) | 30 | 30 | 35 | 35 | 20 |
Max. HDPE Output (kg/h) | 60 | 100 | 160 | 200 | 240 |
Max. PVC output(kg/h) | 90 | 120 | 180 | 260 | 280 |
